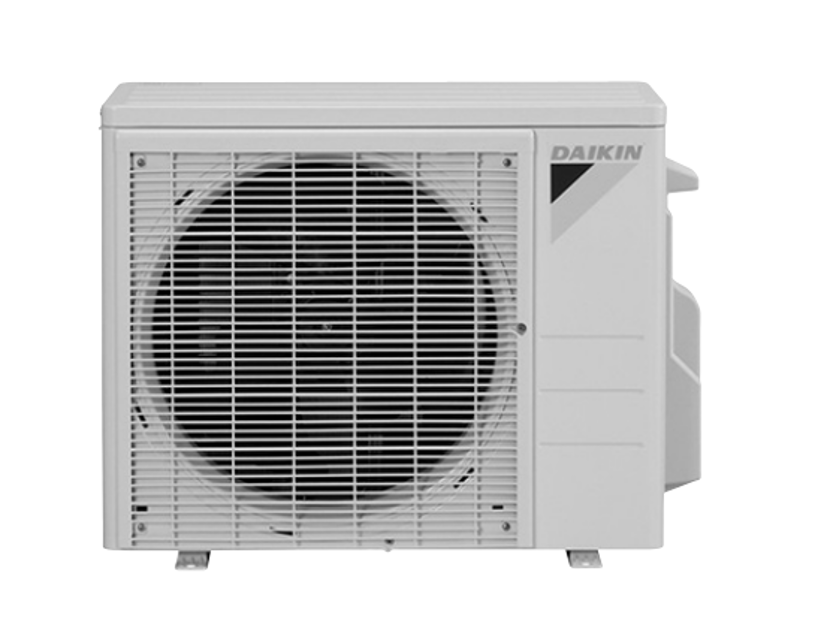

Daikin Outdoor Unit Air Conditioner RXL15WMVJU9

Warning: Ensure the voltage between (+) and (–) of the power module is about 0 V before proceeding

Disconnect the compressor harness connector from the outdoor unit PCB. To disengage the connector, press the protrusion on the connector.

Connector disengaged successfully?

Measure resistance between the terminals of the power module and the terminals of the compressor with a multimeter.

Enter the resistance measurement

Evaluate the measurement results

Sign off on the power module check

Warning: Ensure the voltage is within 320 VDC before proceeding

Set operation off and power off. Disconnect the connector S70 or S71

Control voltage between the pins 4 - 3

Rotation command voltage between the pins 4 - 2

Keep operation off and power off. Connect the connector S70 or S71

4 rotation pulses (0 ~ 15 VDC) at the pins 4 - 1 when the fan motor is rotated 1 turn by hand

Check the outdoor fan motor for proper function if the fuse is melted

EV connector correctly connected to the PCB

Does the EV generate a latching sound when power is turned off and on again?

Continuity confirmed when connector is disconnected and checked with a multimeter

Check the continuity between the pins

Outdoor unit PCB (main PCB) is not faulty

Sign off on the electronic expansion valve check

Warning: Ensure the voltage between (+) and (-) of the diode bridge (DB1) is about 0 V before proceeding

Enter the voltage between (+) and (-) of the diode bridge (DB1)

Is the voltage approximately 0 V?

If voltage is not approximately 0 V, stop the procedure and report the issue

Enter the resistance between the pins of the DB1

Does the resistance indicate a short circuit on the main circuit?

Sign off on the main circuit short check

Warning: This procedure requires trained personnel with PPE!

Measure the power supply waveform between No. 1 and No. 2 on the terminal strip

Upload a photo of the measured waveform

Is the power supply waveform a sine wave?

Is there waveform disturbance near the zero-cross?

Sign off on the power supply waveform check
