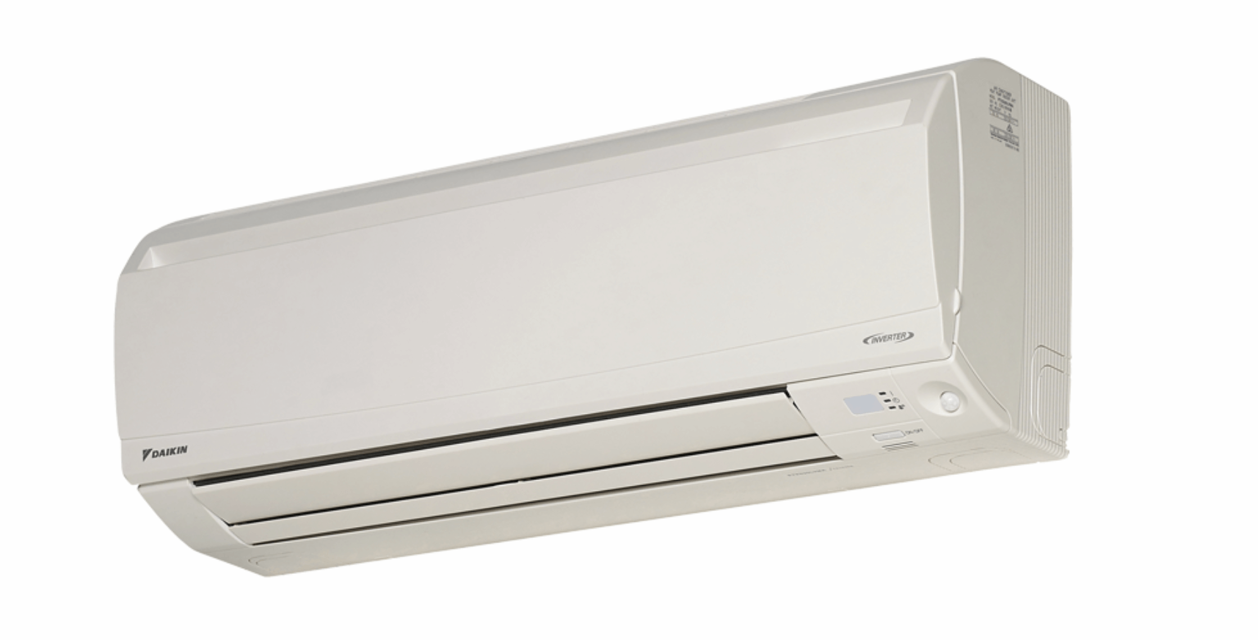

Daikin Air Conditioner FTKS35LVMA/RKS35LVMA

Warning: The method of cleaning and replacement of the filters may differ depending on the model. Refer to the label attached to the separately sold filters themselves.

Open the front panel and pull out the air filters

Hold the recessed parts of the frame and unhook the 4 claws

Vacuum dusts, and soak in lukewarm water or water for about 10 to 15 minutes if dirt is heavy

Do not remove the filter from frame when washing with water

After washing, shake off remaining water and dry in the shade

Since the material is made out of polyester, do not wring out the filter when removing water from it

Remove the tabs on the filter frame and replace with a new filter

Do not throw away the filter frame. Reuse the filter frame when replacing the titanium apatite photocatalytic air-purifying filter

CAUTION: Before cleaning, be sure to stop the operation and turn off the circuit breaker

Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury

Is the operation stopped and circuit breaker turned off?

Is the remote controller clean?

For cleaning, do not use the materials as follows: Hot water above 40°C, Benzine, gasoline, thinner, other volatile oils, Polishing compound, Scrubbing brushes, other hard stuff

Sign off on the air conditioner cleaning

CAUTION: When removing or attaching the front panel, use a robust and stable stool and watch your steps carefully

CAUTION: When removing or attaching the front panel, support the panel securely with hand to prevent it from falling

CAUTION: After cleaning, make sure that the front panel is securely fixed

Is the front panel bothered by dirt?

If the front panel is dirty, proceed with the following steps

Was the front panel successfully removed?

Was the front panel cleaned with a soft cloth soaked in water?

Warning: Do not touch the aluminum fins by bare hand at the time of dismounting or mounting the filter

Clean the air filters with water or vacuum cleaner

If dust does not come off easily, wash the air filters with neutral detergent thinned with lukewarm water

Remove the titanium apatite photocatalytic air-purifying filter

Set the filters as they were and close the front panel

Sign off on the air filter cleaning

Warning: Always replace both batteries together with the same type

Note: If the remote controller display begins to fade or reception performance degrades within a year, replace the batteries

Sign off on the battery replacement
