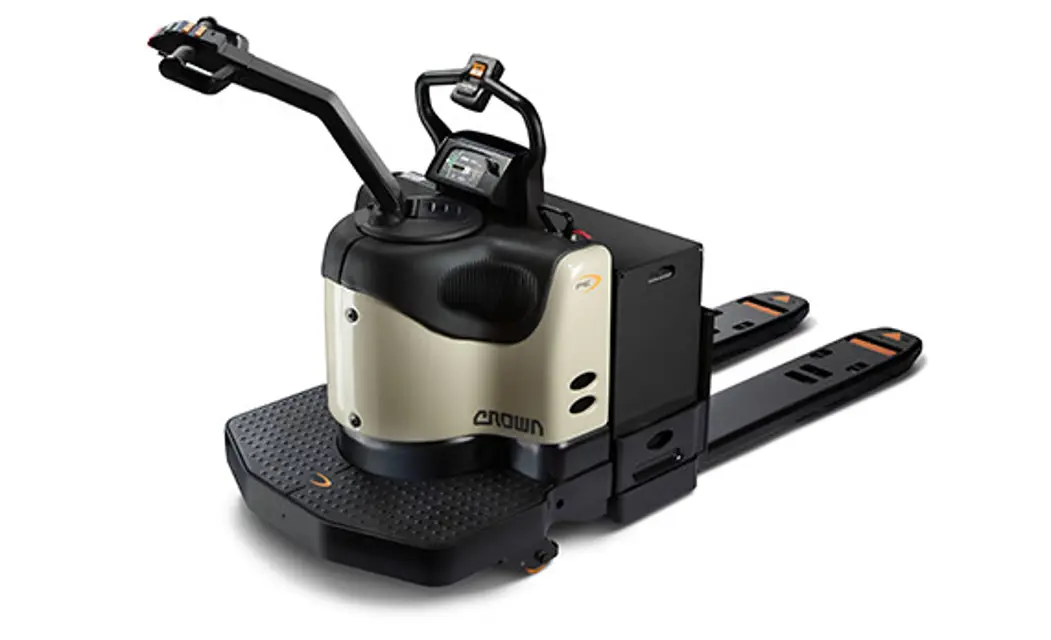

Crown Walkie/Rider Pallet Truck PE-4500-80

Test drive your truck in an uncongested area

Drive the truck slowly in both directions. Check the reversing button

Check braking distance in forward and reverse. Load size and floor conditions can affect these distances

Drive through the full speed range in both forward and reverse

Know the distance it takes to stop before you start working. If the braking distance is too long to stop safely, don't drive the truck

Check Coast, QuickPickTM controls, and any other options your truck may have

If anything doesn't look, work or feel right, don't drive the truck. Report the problem to your supervisor

Warning: Battery maintenance requires trained personnel with PPE!

Truck is turned OFF, coast selector is off and the brake is applied

Correct size and weight battery is used

Nothing metal is touching the top of the cells

Approved spreader bar is used to place or remove the battery

Roller stand is used correctly if applicable

Battery retainers are replaced and in place

Battery is connected and truck operation is checked

Note: There is approximately a 10 second delay before lift is available when the battery is connected to the truck

Battery retainers on both sides of the truck are properly installed

All wheels are in good condition

Twist grips and grab bar are clean

Both forks are secure and not bent, cracked or badly worn

No signs of hydraulic leaks under the truck
