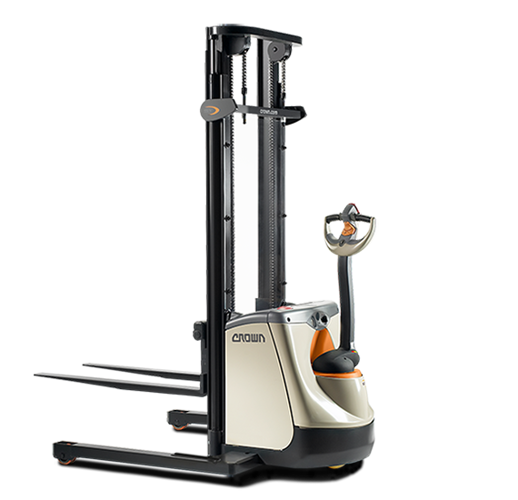

Crown Straddle Stacker ST3200N 1.0

Warning: Only trained personnel should perform this procedure

Is the truck turned OFF and battery disconnected?

Is the correct size and weight battery used?

Is there any metal touching the top of the cells?

Is an insulator used when necessary?

Is an approved spreader bar used to place or remove the battery?

Are the spreader bar hooks adjusted to fit the battery?

Is the new battery connected and truck operation checked?

Sign off on the battery replacement

Check if the truck has a single industrial battery or a battery pack

Check all batteries daily unless sealed, maintenance-free batteries have been selected

Access to an AC electrical outlet for built-in charger

Turn the truck off. Do not disconnect the battery

Use an extension cord less than 7.5 meters (25 ft) long, with a wire size of 16 AWG or heavier

Plug one end of the extension cord into the charging socket on the console

Plug the other end of the cord into the AC outlet

Check the charging lights on the console

Warning: This check requires trained personnel with PPE!

All wheels are in good condition

Both forks are secure and not bent, cracked or badly worn

All lift chains are not damaged

Load backrest is in place and secure

No signs of hydraulic leaks under the truck

Test drive in an uncongested area

Try all the hydraulic functions

Operate the truck slowly in both directions

Operate through the full speed range in both forward and reverse

If the braking distance is too long to stop safely, don't use the truck
