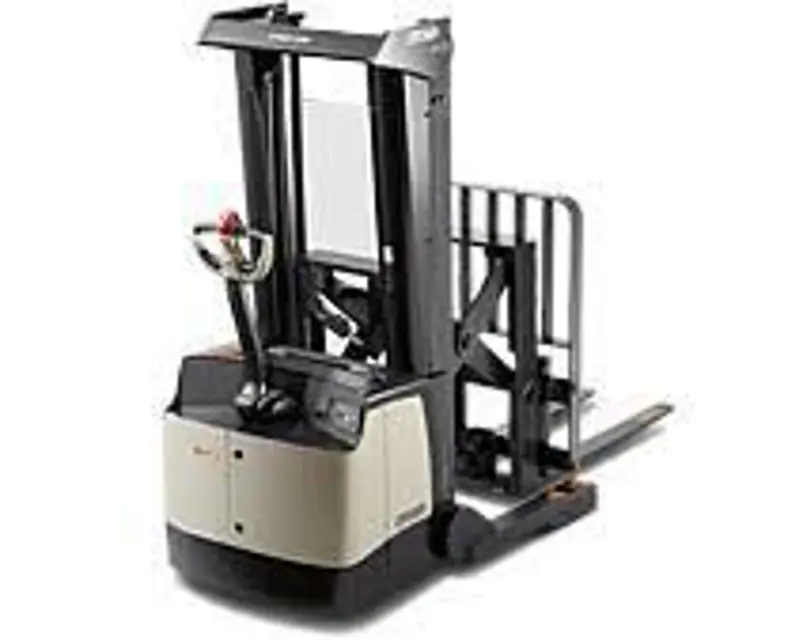

Crown Heavy-Duty Walkie Reach Stacker SHR 5500 Series

Warning: Battery maintenance requires trained and authorized personnel with PPE!

Extension cord less than 7.5 meters (25ft) long with a wire size of 16 AWG or heavier used?

One end of the extension cord plugged into the charging socket in the battery compartment?

Other end of the cord plugged into the AC outlet?

Charging lights inside the battery compartment checked?

Cells of serviceable batteries filled to the proper level?

Truck key switch turned OFF and all controls in the off or neutral position?

Test drive in an uncongested area

Check that steering is smooth and easy

Operate the truck slowly in both directions

Operate through the full speed range in both forward and reverse

Check braking distance in forward and reverse at a slow speed

Note: Load size and floor conditions can affect braking distances

Know the distance it takes to stop before you start working

If the braking distance is too long to stop safely, don't drive the truck

Check your truck before starting work. You must make sure your truck is safe to use.

Walk around your truck and check it over.

Check to make sure the battery is charged, water level is OK and vent caps are in place. Don't use an open flame to check the battery.

See that all wheels are in good condition.

Check that both forks are secure and not bent, cracked or badly worn.

Inspect lift chains for damage.

See that the load backrest is in place and secure, if your truck has that option.

Look under the truck for signs of hydraulic leaks.
