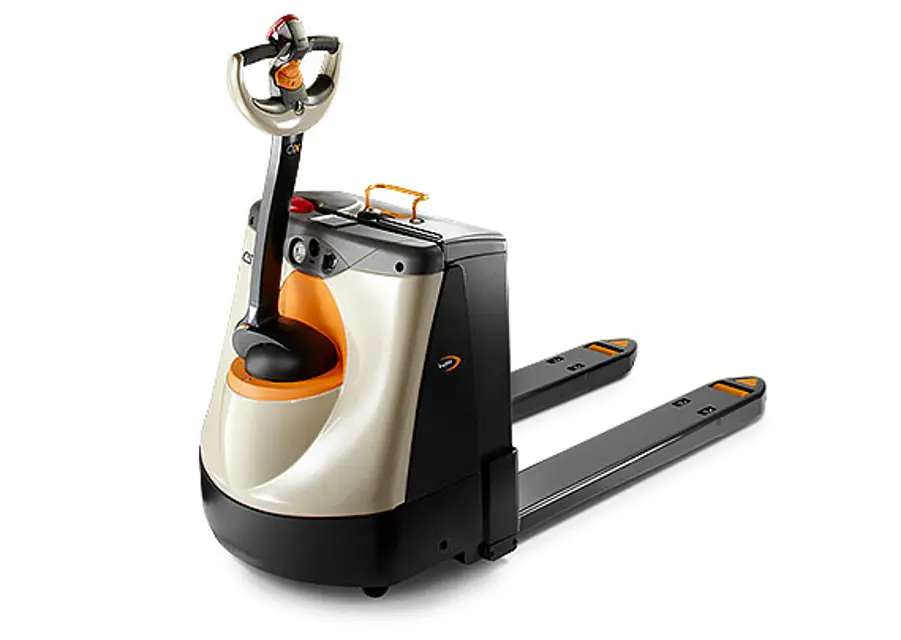

Crown Electric Walkie Pallet Truck WP2320-2.0

Check all batteries daily unless sealed, maintenance-free batteries have been selected

To use a separate external charger, follow the directions on the charger provided

To use a charger built into the truck you must first have access to an AC electrical outlet. To charge the batteries:

Turn the truck off. Do not disconnect the battery

Use an extension cord less than 25 ft. long with a wire size of 16 AWG or heavier

Plug one end of the extension cord into the charging socket on the console

Plug the other end of the cord into the AC outlet

WHEN YOU INSTALL OR CHANGE INDUSTRIAL BATTERIES:

• Turn the truck OFF and disconnect the battery

• Make certain you use the correct size and weight battery

Never operate a truck that has an underweight or undersized battery installed

• Never let anything metal touch the top of the cells. You could cause sparks or do damage to the battery. Use an insulator (such as plywood) when necessary

• Use an approved spreader bar to place a battery in, or remove it from, the battery compartment. Make sure you adjust the spreader bar hooks to fit the battery

• Connect the new battery. Turn the truck ON and check truck operation

Test your truck in an uncongested area

Operate the truck slowly in both directions

Operate through the full speed range in both forward and reverse

Check braking distance in forward and reverse. Load size and floor conditions can affect these distances

Know the distance it takes to stop before you start working. If the braking distance is too long to stop safely, don't use the truck

If anything doesn't look, work or feel right, don't drive the truck. Report the problem to your supervisor

Upload the checklist forms from your Crown dealer (part no. OF-3772). Used properly, this checklist can alert service people to needed repairs

Check your truck before starting work. You must make sure your truck is safe to use.

Walk around your truck and check it over.

Make sure batteries are charged.

Check water level in serviceable batteries and see that vent caps are in place.

Inspect battery cables and connectors for damage or corrosion.

See that all wheels are in good condition.

Check that both forks are straight and not cracked or badly worn.

See that the load backrest is in place and secure, if your truck has that option.
