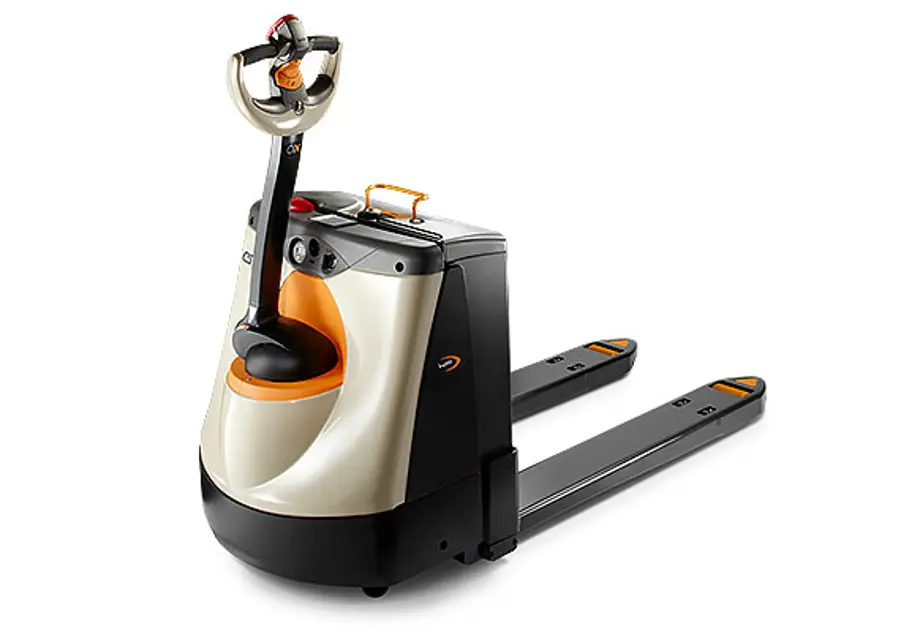

Crown Electric Walkie Pallet Truck WP2315-1.6

CHECK YOUR TRUCK BEFORE STARTING WORK

Water level in serviceable batteries is adequate

Battery cables and connectors are not damaged or corroded

All wheels are in good condition

Both forks are straight and not cracked or badly worn

Test your truck in an uncongested area

Operate the truck slowly in both directions

Operate through the full speed range in both forward and reverse

Check braking distance in forward and reverse. Load size and floor conditions can affect these distances

Know the distance it takes to stop before you start working. If the braking distance is too long to stop safely, don't use the truck

If anything doesn't look, work or feel right, don't drive the truck. Report the problem to your supervisor

Report the problem to your supervisor

Warning: Battery maintenance requires trained and authorized personnel with PPE!

Is the correct size and weight battery used?

Is there any metal touching the top of the cells?

Is an approved spreader bar used for battery placement?

Is the truck operational after battery change?

DANGER! TRUCK BATTERIES CAN BE DANGEROUS: Your truck battery produces a gas that can explode. It also contains acid that could burn or disfigure you.

Is the battery work done in a safe area provided by the company?

Your truck will have either a single industrial battery or a battery pack containing four automotive style batteries

To use a separate external charger, follow the directions on the charger provided

To use a charger built into the truck you must first have access to an AC electrical outlet. To charge the batteries:

Turn the truck off. Do not disconnect the battery

Use an extension cord less than 25 ft. long with a wire size of 16 AWG or heavier

Plug one end of the extension cord into the charging socket on the console

Plug the other end of the cord into the AC outlet
