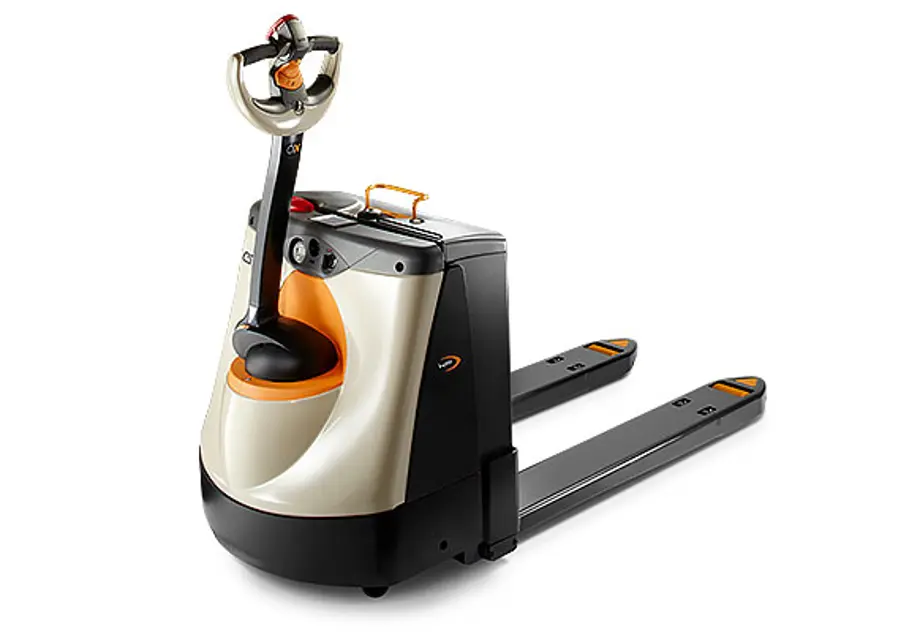

Crown Electric Walkie Pallet Truck WP2300-45

CHECK YOUR TRUCK BEFORE STARTING WORK

Water level in serviceable batteries is adequate

Battery cables and connectors are not damaged or corroded

All wheels are in good condition

Both forks are straight and not cracked or badly worn

WHEN YOU INSTALL OR CHANGE INDUSTRIAL BATTERIES:

• Turn the truck OFF and disconnect the battery

• Make certain you use the correct size and weight battery

Never operate a truck that has an underweight or undersized battery installed

• Never let anything metal touch the top of the cells. You could cause sparks or do damage to the battery. Use an insulator (such as plywood) when necessary

• Use an approved spreader bar to place a battery in, or remove it from, the battery compartment. Make sure you adjust the spreader bar hooks to fit the battery

• Connect the new battery. Turn the truck ON and check truck operation

Test truck in an uncongested area

Operate the truck slowly in both directions

Operate through the full speed range in both forward and reverse

If the braking distance is too long to stop safely, don't use the truck

Check all batteries daily unless sealed, maintenance-free batteries have been selected

To use a separate external charger, follow the directions on the charger provided

To use a charger built into the truck you must first have access to an AC electrical outlet.

Turn the truck off. Do not disconnect the battery

Use an extension cord less than 25 ft. long with a wire size of 16 AWG or heavier

Plug one end of the extension cord into the charging socket on the console
