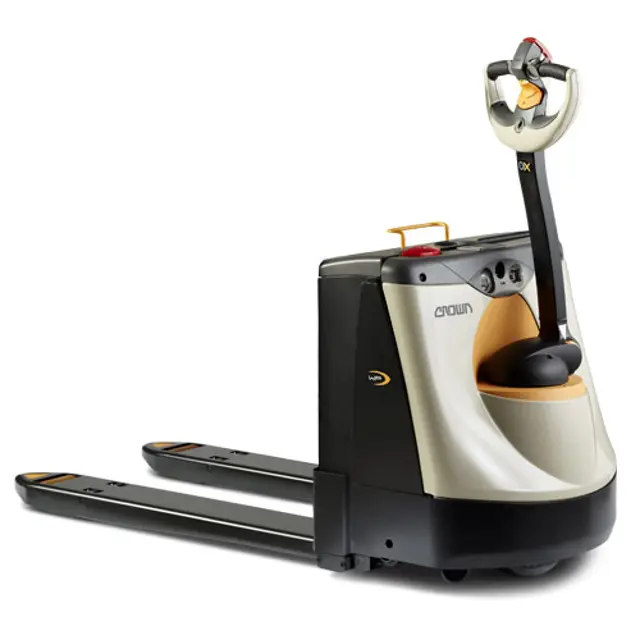

Crown Electric Pallet Jack WP2345-45

Sign off on the braking system maintenance

Check commutator for damage and wear

Check brake lining and contact surfaces for wear

Choose the type of service done

Sign off on the 1000 Hour / 1 Year Check

Check operation and grease flat coil springs for return function

Check brake lining and contact surfaces for wear, replace parts if necessary

Clean attachments of cylinder (bottom) and piston rods (top), check for wear, replace if necessary, grease

Clean bushings and striking surfaces check for wear, replace if necessary, grease

Clean, check for wear, replace if necessary, grease

Clean, check and replace contactors if necessary

Check lift limit switch operation

Check wires, switches and connections are secure

Ensure seal is tight in lift cylinder

Check oil level in hydraulic oil tank, replenish if necessary

Check load wheels and castor bearings for play, replace bearings if necessary

Ensure wheel nuts are correctly torqued in drive wheel

Check electrolyte level and replenish if necessary

Check Battery Connector operation

Check lift/lower rocker switch operation

Check fast/slow travel switch operation

Check reverse safety switch operation
