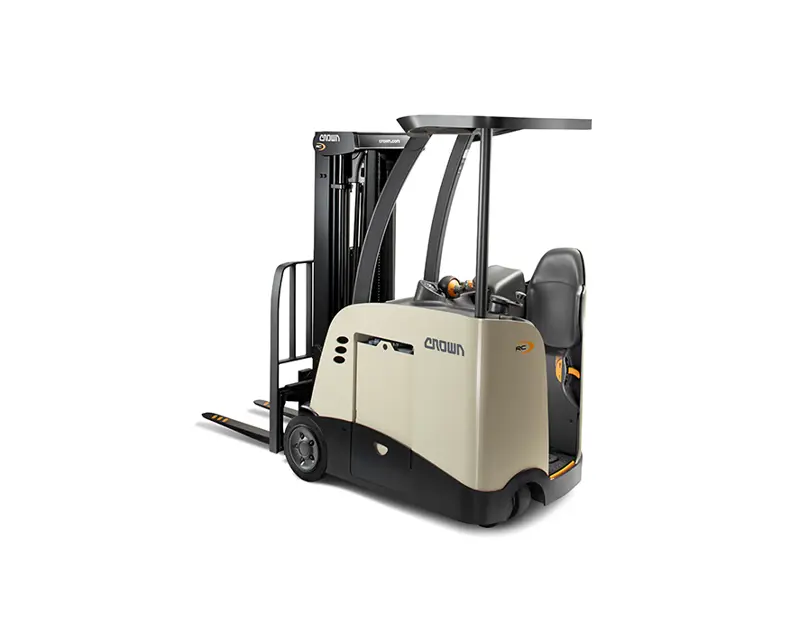

The Crown Counterbalance Truck RC5715-30 is a robust industrial forklift designed for efficient material handling. Known for its reliability and advanced technology, this model offers superior maneuverability and safety features, making it ideal for various warehouse and distribution applications. Optimize your operations with this high-performance equipment from Crown.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Crown Crown Counterbalance Truck RC5715-30 RC5715-30

Create an account to install this asset package.

Maintenance Plans for Crown Crown Counterbalance Truck RC5715-30 Model RC5715-30

Integrate maintenance plans directly into your work orders in MaintainX.

1 Daily Truck Test

Test drive in an uncongested area

Hydraulic functions test

Steering ease and smoothness

Slow drive in both directions

Full speed range drive in forward and reverse

Braking and plugging distances check in forward and reverse

Braking distance

Is the braking distance acceptable?

If the braking distance is too long, do not drive your truck. Notify your supervisor.

Run this procedure

Lead Acid Battery Maintenance

BEFORE CHARGING POWER SOURCES: Read the instructions for the charger and power source. Make sure that the charger has the correct voltage and amperage for the power source. Only charge a power source in an authorized area.

AVOID DAMAGING THE TRUCK AND BATTERY CHARGER: Make sure that the battery charger is plugged into the battery connector, not the truck connector.

AVOID DAMAGING THE BATTERY: Batteries that are not properly maintained will fail prematurely. Always follow the battery manufacturer’s instructions.

Turn off your truck

Unplug the power source connector from the truck

Follow the charging instructions from the power source manufacturer

When charging is complete, unplug the charger and plug the power source connector into the truck

Sign off on the battery maintenance

Run this procedure

1 Daily Truck Check

Battery connector, battery terminals, and battery cables checked for damage

Battery compartment checked for spilled acid

Water level checked and vent caps are in place

Battery retainers on both sides of the truck are properly installed

All wheels are in good condition

Both forks are secure and not bent, cracked or badly worn

Lift chains and anchors checked for damage and corrosion

Lift chains are well lubricated

Load backrest is in place

Run this procedure

Lithium-Ion Battery Maintenance

Charging a V-Force Lithium-Ion Battery

Is the truck turned off?

Is the charger plugged into the battery charge port?

Did you follow the charging instructions for the V-Force lithium-ion battery?

Did you opportunity charge during breaks or whenever the truck was not being used?

Did you unplug the charger from the battery charge port when charging was complete or the battery was fully charged?

Before Charging Power Sources

Did you read the instructions for the charger and power source?

Did you ensure that the charger has the correct voltage and amperage for the power source?

Run this procedure

Battery Maintenance

- Change Batteries

WHEN YOU INSTALL OR CHANGE BATTERIES:

Flooded Lead Acid Batteries 1. Turn the truck OFF. Check that all controls are in neutral

2. Make certain you use the correct size and weight battery. Never operate a truck that has an underweight or undersize battery installed

3. Use a roller stand to install or remove a battery. Make sure the roller stand is the same height as the rollers in the truck's battery compartment. Also make sure the roller stand is at least as long as your battery

4. Never let anything metal touch the top of the cells

You could cause sparks or do damage to the battery

Use an insulator (such as plywood) when necessary

5. Use an approved spreader bar to place a battery on, or remove it from a stand. Make sure you adjust the spreader bar hooks to fit the battery. Lift and move the battery carefully

Run this procedure
