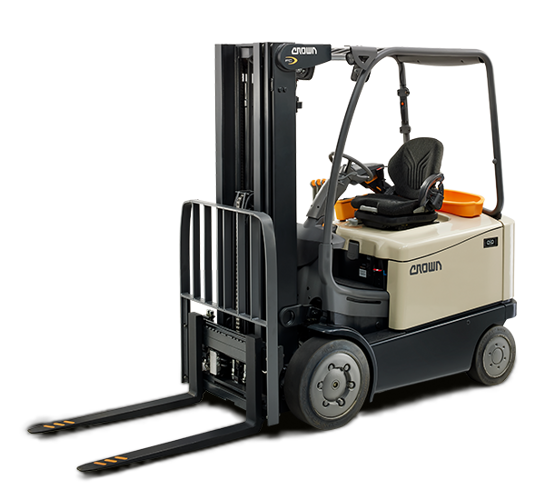

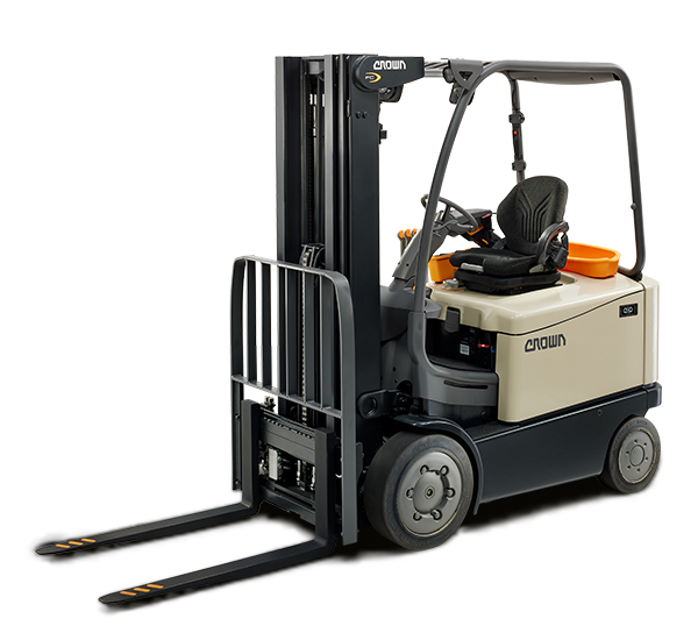

The Crown Counterbalance Truck FC 5745-60 is a robust and versatile industrial forklift designed for efficient material handling in various environments. Known for its reliability and advanced safety features, this model excels in maneuverability and operator comfort, making it an ideal choice for warehouses and manufacturing facilities.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Crown Crown Counterbalance Truck FC 5745-60 FC 5745-60

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Crown Crown Counterbalance Truck FC 5745-60 FC 5745-60

Create an account to install this asset package.

Maintenance Plans for Crown Crown Counterbalance Truck FC 5745-60 Model FC 5745-60

Integrate maintenance plans directly into your work orders in MaintainX.

1 Daily Truck Test

Test drive in an uncongested area

Adjust the operator seat and steering wheel to a comfortable position

Ensure full operation of the controls

Fasten your seat belt

Try all the hydraulic functions

Check that the steering is easy and smooth

Drive the truck slowly in both directions

Drive through the full speed range in both forward and reverse

Check braking and plugging distances in forward and reverse

Run this procedure

1 Daily Truck Check

Walk around your truck and check it over

Battery is charged

Battery retainer is properly installed

All wheels are in good condition

Both forks are secure and not bent, cracked or badly worn

Lift chains and anchors for damage and corrosion

Lift chains are well lubricated

The load backrest is in place and secure, when required

No signs of leaks under the truck

Run this procedure

1 Daily Battery Check

Gas struts working properly and holding the seat deck securely in the open position

For flooded lead acid batteries, battery water level checked

Warning: Don't use an open flame to check the battery. Be sure vent caps are in place

Battery cables and connectors inspected for damage or corrosion

Sign off on the daily battery check

Run this procedure

Lithium-Ion Battery Maintenance

Charging a V-Force Lithium-Ion Battery

Turn off your truck

Plug the charger into the battery charge port

Follow the charging instructions for the V-Force lithium-ion battery

Opportunity charge during breaks or whenever the truck is not being used

When opportunity charging is complete or the battery is fully charged, unplug the charger from the battery charge port

Before Charging Power Sources

Read the instructions for the charger and power source

Make sure that the charger has the correct voltage and amperage for the power source

Run this procedure

Lead Acid Battery Maintenance

BEFORE CHARGING POWER SOURCES: Read the instructions for the charger and power source. Make sure that the charger has the correct voltage and amperage for the power source. Only charge a power source in an authorized area.

AVOID DAMAGING THE TRUCK AND BATTERY CHARGER: Make sure that the battery charger is plugged into the battery connector, not the truck connector.

AVOID DAMAGING THE BATTERY: Batteries that are not properly maintained will fail prematurely. Always follow the battery manufacturer’s instructions.

Turn off your truck

Unplug the power source connector from the truck

Follow the charging instructions from the power source manufacturer

When charging is complete, unplug the charger and plug the power source connector into the truck

Sign off on the battery maintenance

Run this procedure
