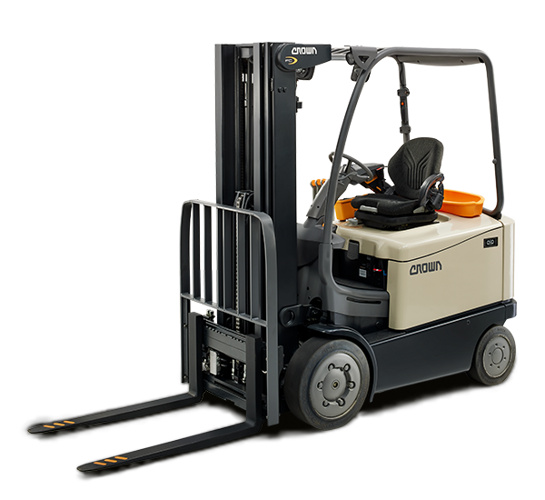

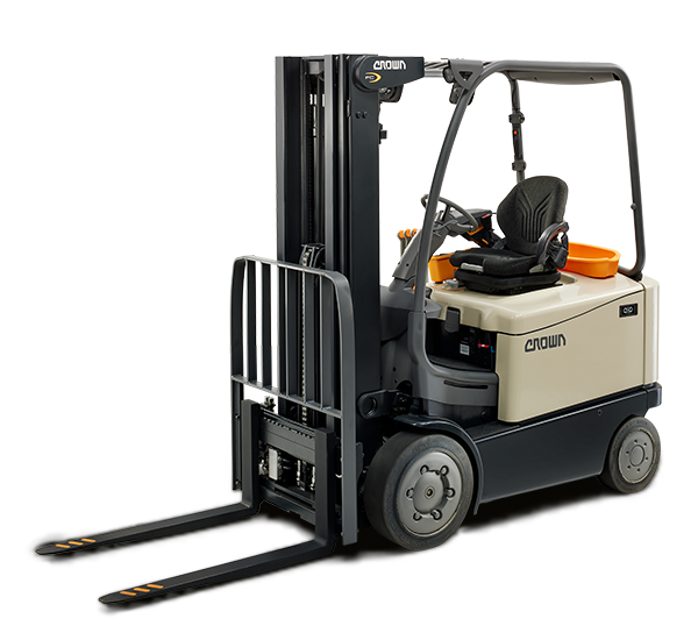

Crown Counterbalance Truck FC 5725-50

Need answers fast?
Explore the manual using AI.

Crown Counterbalance Truck FC 5725-50
Crown Counterbalance Truck FC 5725-50

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Crown Counterbalance Truck FC 5725-50

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Crown Counterbalance Truck FC 5725-50

Crown Counterbalance Truck FC 5725-50

Create an account to install this asset package.

Maintenance Plans for Crown Counterbalance Truck Model FC 5725-50

Integrate maintenance plans directly into your work orders in MaintainX.

Battery Maintenance

Check mark

Warning: Battery maintenance requires trained personnel with PPE!

Check mark

Truck is OFF and all controls are in neutral

Check mark

Steering wheel tilted up, storage tray removed, and seat moved towards the rear

Check mark

Seat deck raised to the open position and gas struts are working properly

Check mark

Full side cover or short battery retainer removed

Check mark

Correct size and weight battery used

Check mark

Roller stand used for battery installation or removal is the same height as the rollers in the truck's battery compartment and at least as long as the battery

Check mark

Nothing metal touched the top of the cells

Check mark

Approved spreader bar used to move a battery

Run this procedureArrow right

Lithium-Ion Battery Maintenance

Check mark

Charging a V-Force Lithium-Ion Battery

Check mark

Is the truck turned off?

Check mark

Is the charger plugged into the battery charge port?

Check mark

Are you following the charging instructions for the V-Force lithium-ion battery?

Check mark

Is the battery being opportunity charged during breaks or whenever the truck is not being used?

Check mark

Is the charger unplugged from the battery charge port when charging is complete or the battery is fully charged?

Check mark

Before Charging Power Sources

Check mark

Have you read the instructions for the charger and power source?

Check mark

Does the charger have the correct voltage and amperage for the power source?

Run this procedureArrow right

1 Daily Truck Check

Check mark

Battery is charged

Check mark

Battery retainer is properly installed

Check mark

All wheels are in good condition

Check mark

Both forks are secure and not bent, cracked or badly worn

Check mark

Lift chains and anchors for damage and corrosion

Check mark

Lift chains are well lubricated

Check mark

The load backrest is in place and secure, when required

Check mark

No signs of leaks under the truck

Check mark

Seat belt is not worn out

Run this procedureArrow right

1 Daily Truck Test

Check mark

Test drive in an uncongested area

Check mark

Adjust the operator seat and steering wheel to a comfortable position

Check mark

Ensure full operation of the controls

Check mark

Fasten your seat belt

Check mark

Try all the hydraulic functions

Check mark

Check that the steering is easy and smooth

Check mark

Drive the truck slowly in both directions

Check mark

Drive through the full speed range in both forward and reverse

Check mark

Check braking and plugging distances in forward and reverse

Run this procedureArrow right

1 Daily Battery Check

Check mark

Gas struts are working properly and holding the seat deck securely in the open position

Check mark

For flooded lead acid batteries, battery water level is checked

Check mark

Warning: Don't use an open flame to check the battery. Be sure vent caps are in place

Check mark

Battery cables and connectors are inspected for damage or corrosion

Check mark

Sign off on the daily battery check

Run this procedureArrow right

Parts for Crown Counterbalance Truck FC 5725-50

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Safety Checklist

OF-3772

Safety Checklist

OF-3772

Safety Checklist

OF-3772
