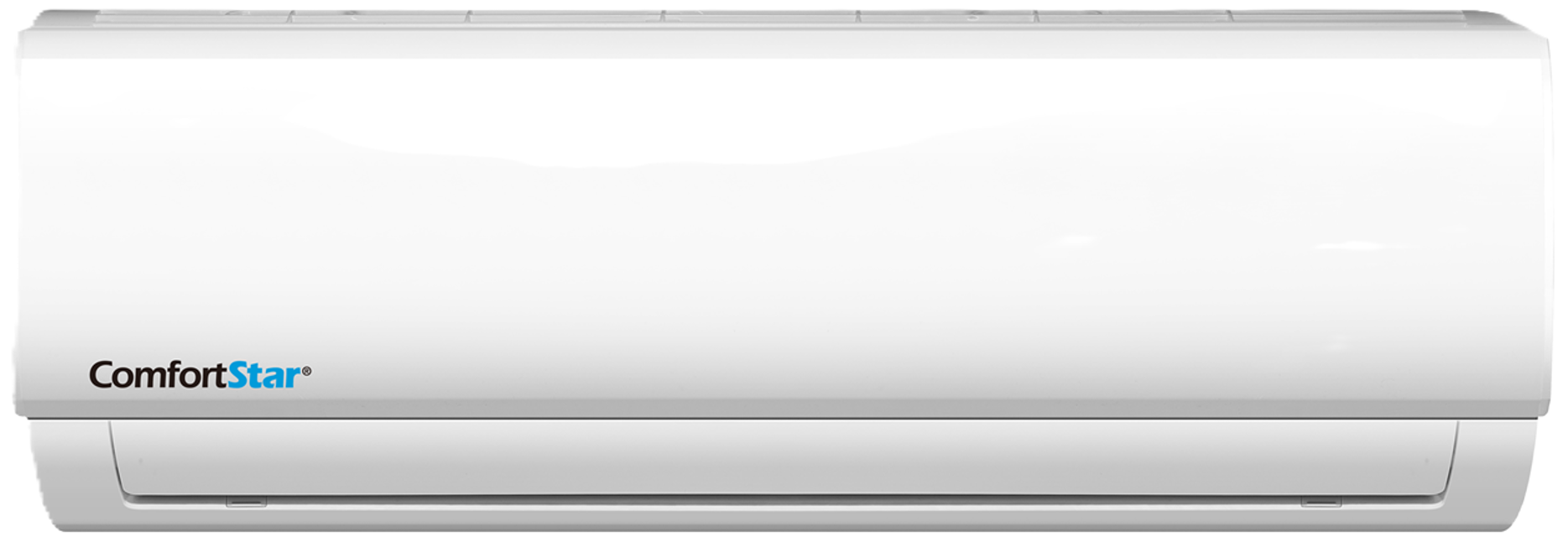

Comfort Star Indoor Unit CIP18CD(I)

Comfort Star Indoor Unit CIP18CD(I)

Create an account to install this asset package.

Maintenance Plans for Comfort Star Indoor Unit Model CIP18CD(I)

Integrate maintenance plans directly into your work orders in MaintainX.

Refrigerant Change

Check mark

Both 2- and 3-way valves closed

Check mark

Handle Lo charge hose slightly connected to the 3-way service port

Check mark

Charge hose connected to the valve at the bottom of the cylinder

Check mark

Is the refrigerant R410A/R32?

Check mark

Valve at the bottom of the cylinder opened for 5 seconds to purge the air in the charge hose

Check mark

Charge hose with push pin Handle Lo fully tightened to the service port of 3-way valve

Check mark

Starting weight of the charging cylinder

Check mark

Handle Lo manifold valve, 2- and 3-way valves fully opened

Check mark

Air conditioner operated in cooling mode to charge the system with liquid refrigerant

Run this procedureArrow right

Temperature Sensor Check

Check mark

WARNING: Be sure to turn off all power supplies or disconnect all wires to avoid electric shock. Operate after compressor and coil have returned to normal temperature in case of injury.

Check mark

Temperature sensor disconnected from PCB

Check mark

Resistance value of the sensor

Check mark

Upload a picture of the temperature sensor resistance value table

Check mark

Note: The picture and the value are only for reference, actual condition and specific value may vary.

Check mark

Sign off on the temperature sensor check

Run this procedureArrow right

IPM Check

Check mark

WARNING: Electricity remains in capacitors even when the power supply is off. Ensure the capacitors are fully discharged before troubleshooting.

Check mark

Outdoor unit turned off and power supply disconnected

Check mark

Electrolytic capacitors discharged and all energy-storage unit has been discharged

Check mark

Outdoor PCB or IPM board disassembled

Check mark

Resistance value between P and U

Check mark

Resistance value between P and V

Check mark

Resistance value between P and W

Check mark

Resistance value between P and N

Check mark

Resistance value between U and N

Run this procedureArrow right

Compressor Check

Check mark

Warning: This procedure requires trained personnel with PPE!

Check mark

Compressor power cord disconnected from outdoor PCB

Check mark

Resistance value of each winding

Check mark

Check the resistance value of each winding in the following table.

Check mark

Upload a photo of the multi-meter reading

Check mark

Sign off on the compressor check

Run this procedureArrow right

Initial Air Conditioner Check

Check mark

Warning: This procedure requires trained personnel with PPE!

Check mark

Tighten the flare nuts of the indoor and outdoor units, and confirm that both the 2- and 3-way valves are closed.

Check mark

Connect the charge hose with the push pin of Handle Lo to the gas service port of the 3-way valve.

Check mark

Connect another charge hose to the vacuum pump.

Check mark

Fully open the Handle Lo manifold valve.

Check mark

Using the vacuum pump, evacuate the system for 30 minutes.

Check mark

Check whether the compound meter indicates -0.1 MPa (14.5 Psi).

Check mark

If the pressure successfully reaches -0.1 MPa (14.5 Psi), fully close the Handle Lo valve, then cease vacuum pump operations.

Check mark

Wait for 5 minutes then check whether the gauge needle moves after turning off the vacuum pump. If the gauge needle moves backward, check wether there is gas leakage.
