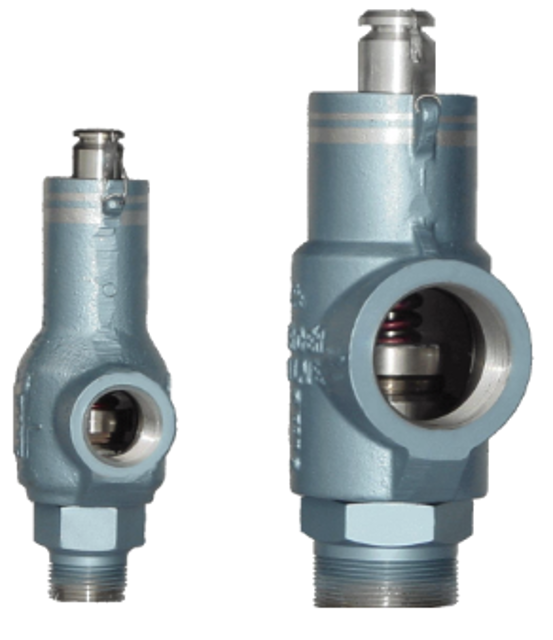

Mercer Valve Pressure Relief Valve 81-17151T17G21

Warning: This procedure requires trained personnel with PPE!

Enter the pressure losses to the gauges

Note: The main disadvantage in offsite testing is time.

Warning: This maintenance check requires qualified repair personnel!

Is the PRV correct for the application?

Are there any apparent problems with the PRV?

Is the nameplate information correct?

Is there any damage to the valve?

Are there any issues that would keep the valve from opening or inhibit flow?

Are there any problems found during the visual inspection?

Warning: This inspection requires trained personnel with PPE!

Enter the set pressure of the valve

Contact Mercer Valve Co. Inc. for proper leak pressure and specification for the valve.

Did the pressure hold steady during the test?

If the pressure did not hold steady, there is a potential leak and the valve should be removed for further testing.

Did the valve pass the API STD 527 test?

For soft seated valves, such as the 8100 Series, zero bubbles are observed for one minute to pass leak inspection per API 527.

Did the valve pass the flow gauge test?

During the set pressure inspection, the set pressure is verified in accordance with the ASME BPVC.

For all valves set 70psi (500kPa) and above, the set pressure has a tolerance of $3% of the set pressure.

For all set pressure below 70psi (500kPa) the tolerance is (±2psi ((±15kPa).

If the valve has a CDTP associated with it due to temperature and/or backpressure, the test pressure is checked to the CDTP.; Even with a CDTP the set pressure tolerance is calculated based on the actual nameplate set pressure.; The set pressure test should be performed before and after any repairs.

The set pressure is inspected to the definition listed in NB-18, a publication by the National Board of Pressure Vessel Inspectors, which is found at http://www.nationalboard.org/.

This publication lists all ASME BPVC certified pressure relief valves.

It indicates the correct set pressure definition and other characteristics of a valve.; The set pressure has been defined to achieve a particular operational characteristics.; If the wrong set pressure definition is used in the inspection test, the valve's set pressure will not be accurate and it may not operate appropriately.

The correct fluid for testing has to be used to achieve accurate results.; For gas/vapor service, nitrogen or compressed air is used as the test fluid, while for liquid service, water is used.; If the incorrect fluid is used during the testing, the test's results will be inaccurate.; Depending on the size of the valve and its set pressure, the set pressure discrepancy can vary outside of ASME tolerances.

Setting procedures should be in accordance with ASME PTC 25.; The rate of the system pressure increase should be slow when the pressure is within 15% of the set pressure. Within this range, the rate should never be more than 2psi/sec (15kPa/sec).; Ideally each pressure increment on the pressure gauge should be clearly read as the pressure is increased. Slow pressure increase helps to accurately read the pressure gauge.

Warning: This procedure requires trained personnel!

Are two pressure gauges used for testing?

Are the gauges reading identical values within their respective tolerances?

Select the type of the first gauge

Select the type of the second gauge

Is the analog (dial) gauge not liquid filled?

Does the digital gauge respond to quick pressure increases?

Does the test gauge have at least 0.25% accuracy over their full scale?

Is the portion of the gauge used selected so that the tolerance of it is more stringent than the set pressure's tolerance?
