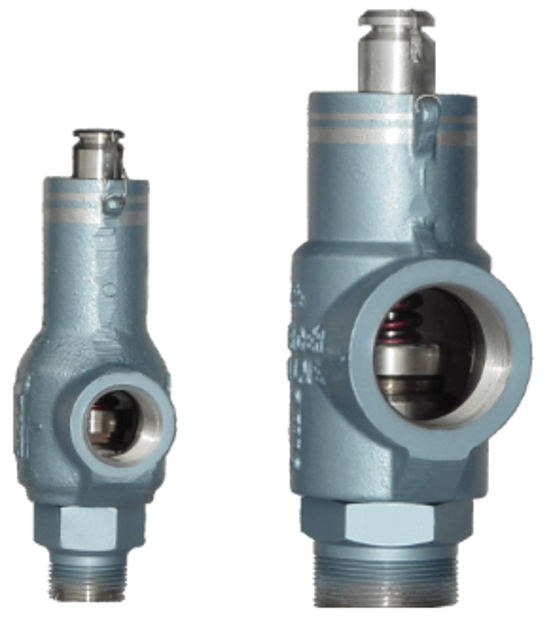

Mercer Valve Pressure Relief Valve 81-17151V13G11

The following general procedure is recommended for the disassembling of a Mercer 8100 Series PRV.; Non-standard, “special”, configurations are possible and these instructions may not be reflective of them; a special configuration is indicated by a special code at the end of the PRV’s part number.; Always make sure there is no pressure in the system prior to removing a PRV.

These instructions are divided into two sections: 1” Body and 2” Body.

1. Cut and remove the seal wire and unscrew the cap to expose the adjustment screw.

i) Go to "c" if the valve is a lift lever configuration.

2. Loosen the lock nut from the adjustment screw.

3. Relieve the compression on the spring by turning the adjustment screw counter clockwise.; This is important so that components will not spring out and pose a hazard.; If the adjustment screw begins to appear as residing back into the bonnet during the relieving of the preload, then the spring compression has been completely removed and the adjustment bushing is beginning to re-compress the spring.

4. Rigidly support the body to prevent movement during disassembly.

5. Unscrew the inlet base using the appropriate wrenching flats.; 6. Remove the set spring and discard the disk subassembly.

During the set pressure inspection, the set pressure is verified in accordance with the ASME BPVC.

For all valves set 70psi (500kPa) and above, the set pressure has a tolerance of $3% of the set pressure.

For all set pressure below 70psi (500kPa) the tolerance is (±2psi ((±15kPa).

If the valve has a CDTP associated with it due to temperature and/or backpressure, the test pressure is checked to the CDTP.; Even with a CDTP the set pressure tolerance is calculated based on the actual nameplate set pressure.; The set pressure test should be performed before and after any repairs.

The set pressure is inspected to the definition listed in NB-18, a publication by the National Board of Pressure Vessel Inspectors, which is found at http://www.nationalboard.org/.

This publication lists all ASME BPVC certified pressure relief valves.

It indicates the correct set pressure definition and other characteristics of a valve.; The set pressure has been defined to achieve a particular operational characteristics.; If the wrong set pressure definition is used in the inspection test, the valve's set pressure will not be accurate and it may not operate appropriately.

The correct fluid for testing has to be used to achieve accurate results.; For gas/vapor service, nitrogen or compressed air is used as the test fluid, while for liquid service, water is used.; If the incorrect fluid is used during the testing, the test's results will be inaccurate.; Depending on the size of the valve and its set pressure, the set pressure discrepancy can vary outside of ASME tolerances.

Setting procedures should be in accordance with ASME PTC 25.; The rate of the system pressure increase should be slow when the pressure is within 15% of the set pressure. Within this range, the rate should never be more than 2psi/sec (15kPa/sec).; Ideally each pressure increment on the pressure gauge should be clearly read as the pressure is increased. Slow pressure increase helps to accurately read the pressure gauge.

Warning: This inspection requires trained personnel with PPE!

Enter the set pressure of the valve

Contact Mercer Valve Co. Inc. for proper leak pressure and specification for the valve.

Did the pressure hold steady during the test?

Select the method used for testing leakage

If the pressure is not stable, there is a potential leak and the valve should be removed for further testing.

Did the valve pass the backpressure test?

Warning: This procedure requires trained personnel!

Are two pressure gauges used for testing?

Are the gauges reading identical values within their respective tolerances?

Select the type of the first gauge

Select the type of the second gauge

Is the analog (dial) gauge not liquid filled?

Does the digital gauge respond to pressure quickly and give accurate readings?

Is the test gauge at least 0.25% accurate over their full scale?

Is the tolerance of the gauge used more stringent than the set pressure's tolerance?

Warning: This procedure requires trained personnel with PPE!

Is the valve removed from the unit?

If the valve is not removed, stop the procedure and report to the supervisor

Enter the pressure losses to the gauges

Is the test bench properly assembled?

If the test bench is not properly assembled, stop the procedure and report to the supervisor
