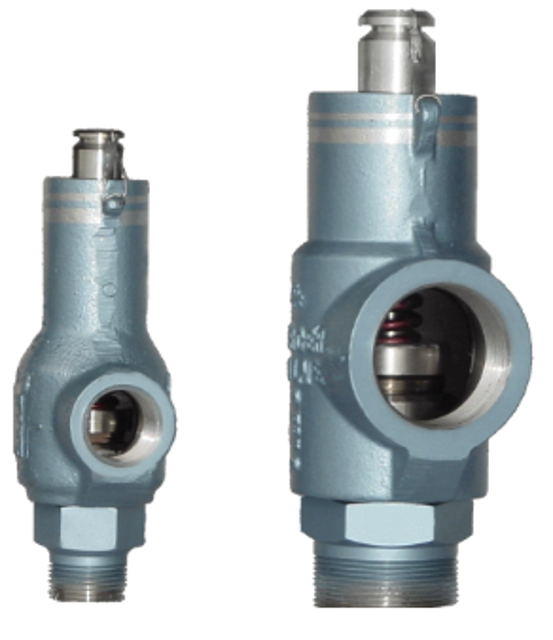

Mercer Valve Pressure Relief Valve 81-12151V18G21

Warning: This maintenance check requires qualified repair personnel!

Is the PRV correct for the application?

Are there any apparent problems with the PRV?

Is the nameplate information correct?

Is there any damage to the valve?

Are there any issues that would keep the valve from opening or inhibit flow?

Are there any problems found during the visual inspection?

Warning: This procedure requires trained personnel with PPE!

Is the valve accessible for testing?

If the valve is not accessible, report the issue to the maintenance team and stop the procedure

Are the block valves under the valve functioning properly?

Warning: A heavy warn or simmer can cause false readings as a result of insufficient test volume.

Enter the pressure reading from the gauge

Warning: If the gauge is placed too far away from the valve or the line has too many restrictions, there will be pressure loss.

Is the supply pressure sufficient for testing?

The following general procedure is recommended for the disassembling of a Mercer 8100 Series PRV.; Non-standard, “special”, configurations are possible and these instructions may not be reflective of them; a special configuration is indicated by a special code at the end of the PRV’s part number.; Always make sure there is no pressure in the system prior to removing a PRV.

These instructions are divided into two sections: 1” Body and 2” Body.

1. Cut and remove the seal wire and unscrew the cap to expose the adjustment screw.

i) Go to "c" if the valve is a lift lever configuration.

2. Loosen the lock nut from the adjustment screw.

3. Relieve the compression on the spring by turning the adjustment screw counter clockwise.; This is important so that components will not spring out and pose a hazard.; If the adjustment screw begins to appear as residing back into the bonnet during the relieving of the preload, then the spring compression has been completely removed and the adjustment bushing is beginning to re-compress the spring.

4. Rigidly support the body to prevent movement during disassembly.

5. Unscrew the inlet base using the appropriate wrenching flats.; 6. Remove the set spring and discard the disk subassembly.

The following general procedure is recommended for the inspection of an 8100 Series PRV.

New parts should be inspected.

1. Inspect the seat for cuts and abrasions. The seat is the non-metallic element in the nozzle subassembly.

a) If there are only minor scratches or abrasions, the seat may be polished and restored.

b) Polish the seat area lightly with a fine grade abrasive pad. Be careful not to damage the soft seat.

c) If the seat is damaged with deep abrasions and cuts, it should be replaced.

2. Referring to Figure 29, measure the diameter Ds of the nozzle. This diameter must be in the range of values listed in Table

ORIFICE SIZE - ½", NOZZLE DIAMETER Ds, in (mm), 0.620 (15.75) - MINIMUM, 0.622 (15.80) - MAXIMUM

ORIFICE SIZE -¾", NOZZLE DIAMETER Ds, in (mm) 0.914 (23.22) - MINIMUM, 0.916 (23.27) - MAXIMUM

Warning: This inspection requires trained personnel with PPE!

Set pressure of the valve verified?

Contact Mercer Valve Co. Inc. for proper leak pressure and specification for the valve.

Pressure held steady during the test?

Any leakage observed during the test?

Select the method used for testing leakage

Zero bubbles observed for one minute in case of soft seated valves?

Any growth of bubbles observed in soap film test?
