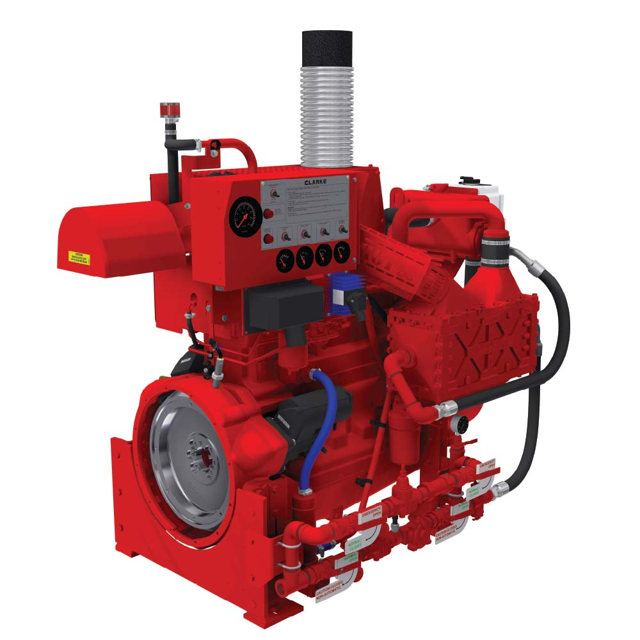

Clarke Fire Pump Diesel Engine JU6H-UF32

Create an account to install this asset package.

Maintenance Plans for Clarke Fire Pump Diesel Engine Model JU6H-UF32

Integrate maintenance plans directly into your work orders in MaintainX.

1 Yearly Engine Oil Change

Warning: Ensure the engine is warm before starting the procedure

Engine operated until warm?

Stop the engine and remove the sump drain plug

Sump drain plug removed?

Drain the lubricating oil from the sump

Lubricating oil drained from the sump?

Fit the drain plug and tighten to 34 Nm (25lbf-ft) / 3.5 kgf-m

Drain plug fitted and tightened?

Fill the sump to the ‘FULL” mark on the dipstick with new and clean lubricating oil of an approved grade

Run this procedure

1 Yearly Engine Maintenance

NOTE: The following Routine Maintenance schedule is based on an engine usage rate not exceeding 2 hours per month. For UL/FM engine models, also refer to NFPA25

Clean Air Cleaner

Check Coolant Inhibitor

Check Crankcase Vent System

Lubricate Driveshaft U-Joints

Check Heat Exchanger Electrode

Check Mounting Isolators

Check Wiring System

IMPORTANT!

Run this procedure

1 Yearly Oil Filter Cartride Change

Engine turned off

Tray placed under the filter

Filter removed with a strap wrench or similar tool

Filter head cleaned

Clean engine lubricating oil added to the new filter

Top of the filter seal lubricated with clean engine lubricating oil

New filter fitted and tightened by hand only

Lubricating oil in the sump checked

Engine operated and checked for leakage from the filter

Run this procedure

Engine Spped Adjustment

Start the engine by following the “To Start Engine” Procedure in this manual

Engine warmed up?

Loosen the jam nut(s) (Figure #38)

Enter the RPM after adjusting the long adjustor

Jam nut tightened?

Stop engine by following “To Stop Engine” Procedure in this manual

Sign off on the engine speed adjustment

Run this procedure

6 Monthly Engine Maintenance

NOTE: The following Routine Maintenance schedule is based on an engine usage rate not exceeding 2 hours per month. For UL/FM engine models, also refer to NFPA25

Maintenance Tasks

IMPORTANT!

• Set main pump controller to “OFF” while servicing engine. Before turning the main pump controller to the OFF" position

• Also, alert the local fire department in the event that the main pump controller is connected by silent alarm to headquarters

• When servicing is complete, return main pump controller selector to Automatic" position and the mode selector on the engine to “Automatic” position. Advise the appropriate personnel the engine has been returned to the “Automatic”"

Sign off on the engine maintenance
