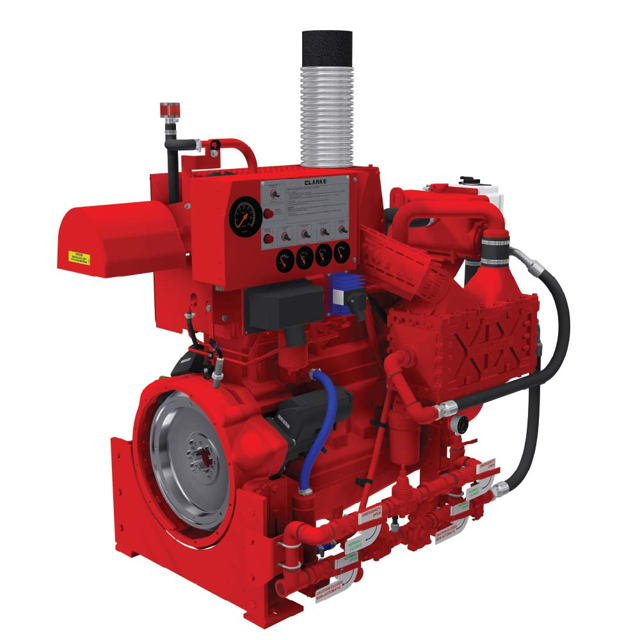

Clarke Fire Pump Diesel Engine JU6H-UF60

Create an account to install this asset package.

Maintenance Plans for Clarke Fire Pump Diesel Engine Model JU6H-UF60

Integrate maintenance plans directly into your work orders in MaintainX.

Engine Spped Adjustment

Start the engine by following the “To Start Engine” Procedure in this manual

Engine warmed up?

Loosen the jam nut(s) (Figure #38)

Rotate the long adjustor

Enter the desired RPM

Holding secure the long adjustor with a wrench tighten the jam nut

Stop engine by following “To Stop Engine” Procedure in this manual

Sign off on the engine speed adjustment

Run this procedure

6 Monthly Engine Maintenance

NOTE: The following Routine Maintenance schedule is based on an engine usage rate not exceeding 2 hours per month. For UL/FM engine models, also refer to NFPA25

Maintenance Tasks

IMPORTANT!

Set main pump controller to “OFF” while servicing engine. Before turning the main pump controller to the OFF" position

Also, alert the local fire department in the event that the main pump controller is connected by silent alarm to headquarters

When servicing is complete, return main pump controller selector to Automatic" position and the mode selector on the engine to “Automatic” position. Advise the appropriate personnel the engine has been returned to the “Automatic”"

Sign off on the engine maintenance

Run this procedure

2 Yearly Engine Replacement

NOTE: The following Routine Maintenance schedule is based on an engine usage rate not exceeding 2 hours per month. For UL/FM engine models, also refer to NFPA25

Air Cleaner replaced

Batteries replaced

Belts replaced

Coolant Hoses replaced

Coolant replaced

IMPORTANT!

Set main pump controller to “OFF” while servicing engine. Before turning the main pump controller to the OFF" position

Also, alert the local fire department in the event that the main pump controller is connected by silent alarm to headquarters

Run this procedure

1 Yearly Engine Maintenance

NOTE: The following Routine Maintenance schedule is based on an engine usage rate not exceeding 2 hours per month. For UL/FM engine models, also refer to NFPA25

Clean Air Cleaner

Check Coolant Inhibitor

Check Crankcase Vent System

Lubricate Driveshaft U-Joints

Check Heat Exchanger Electrode

Check Mounting Isolators

Check Wiring System

IMPORTANT!

Run this procedure

1 Weekly Engine Check

NOTE: The following Routine Maintenance schedule is based on an engine usage rate not exceeding 2 hours per month. For UL/FM engine models, also refer to NFPA25

Weekly Engine Check

While the engine is running inspect exhaust pipe outlet outside of the pump room itself for environmental hazards such as excessive smoke conditions. The following could be used as a guide for general engine operating conditions

Engine Smoke Condition

IMPORTANT!

• Set main pump controller to “OFF” while servicing engine. Before turning the main pump controller to the OFF" position

• Also, alert the local fire department in the event that the main pump controller is connected by silent alarm to headquarters

• When servicing is complete, return main pump controller selector to Automatic" position and the mode selector on the engine to “Automatic” position. Advise the appropriate personnel the engine has been returned to the “Automatic”"

Sign off on the weekly engine check

Run this procedure
