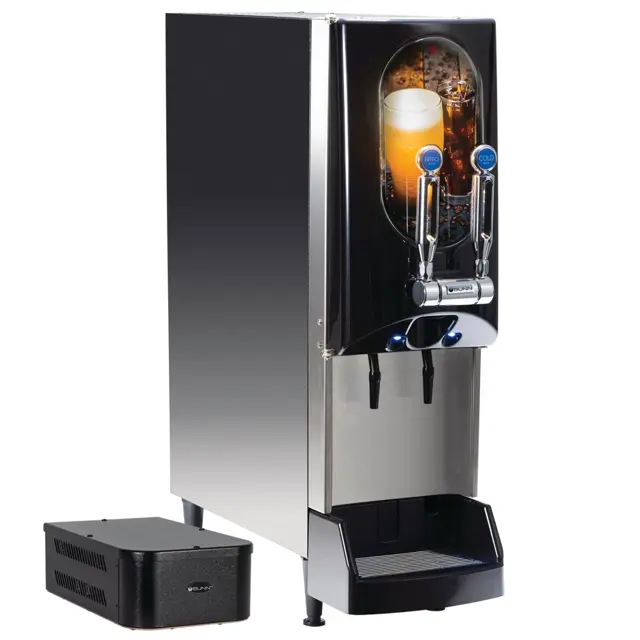

Bunn Cold Draft Dispenser NITRON

Remove and wash the dispense nozzle(s), Nitro Stout Insert, drip tray and drip tray cover in a mild detergent solution. Rinse thoroughly. Use brush (00674.0000) to clean inside and o-ring area on dispense nozzles

Remove Nitro Stout Insert in nitro nozzle for cleaning. Replace before reinstalling nozzle

Wipe splash panel, areas around dispense nozzle(s), and refrigerated compartment with a clean, damp cloth

Use brush and a mild detergent solution to clean inside dispense area where dispense nozzles are removed. Rinse and wipe thoroughly

Sign off on the dispenser product container parts cleaning

Tools required: 1 empty container, sanitizer, and clean, empty concentrate container

All concentrate removed from the dispenser and stored in a separate refrigerated compartment

Clean empty pitcher filled with approximately 64 oz (946 ml) of warm tap water approximately 80°F (26.6°C)

BIB connectors disconnected inside the cabinet at the quick disconnect. Sanitizing extension tube installed and BIB connector reconnected

White cleaning adapters retrieved and connected to the BIB mating connectors

BIB connector placed in pitcher of warm tap water

Drip tray removed and an empty 5-gallon bucket placed under the dispense nozzles

Dispensed at each station until the stream out of the nozzles runs clear (about 30-60 seconds)

BIB connectors removed from the warm water

Tools required: 1 empty 5-gallon (18.9 L) bucket, sanitizer, and clean, empty concentrate container(s)

Remove all concentrate from the dispenser and store in a separate refrigerated compartment

Fill clean empty concentrate containers with approximately 32 oz (946 ml) of warm tap water at minimum 80°F (26.6 C)

Dispense at each station until the stream out of the nozzles runs clear (about 30 seconds)

Remove each dispense nozzle and Nitro Stout insert. Run under hot tap water to remove excess product build-up

Prepare 2.5 gal. (9.46 L) of sanitizing solution

Place nozzles in a separate container of sanitizing solution and mix thoroughly. Allow the parts to soak for 2 minutes

Clean the dispense nozzle receptacle (dispense valves) with sanitizing solution and a soft bristle brush

Clean the concentrate containers inlet adapters with the sanitizing solution and a soft bristle brush. Discard all remaining sanitizing solution

Remove and wash the dispense nozzle(s), Nitro Stout Insert, drip tray and drip tray cover in a mild detergent solution. Rinse thoroughly. Use brush (00674.0000) to clean inside and o-ring area on dispense nozzles

Remove Nitro Stout Insert in nitro nozzle for cleaning. Replace before reinstalling nozzle

Wipe splash panel, areas around dispense nozzle(s), and refrigerated compartment with a clean, damp cloth

Use brush and a mild detergent solution to clean inside dispense area where dispense nozzles are removed. Rinse and wipe thoroughly

Sign off on the dispenser connector parts cleaning

Tools required: 32 oz. (946 ml) minimum empty container

Open dispenser door. Lift up on product containers and remove them from the machine

Wipe down the internal compartment of the cabinet and the concentrate container’s inlet adapter(s) area

Close the door, place an empty container under the dispensing nozzle(s)

Dispense from each station until clear water flows from the dispense nozzle(s)

Open dispenser door and reconnect all product containers

Sign off on the dispenser product container cleaning
