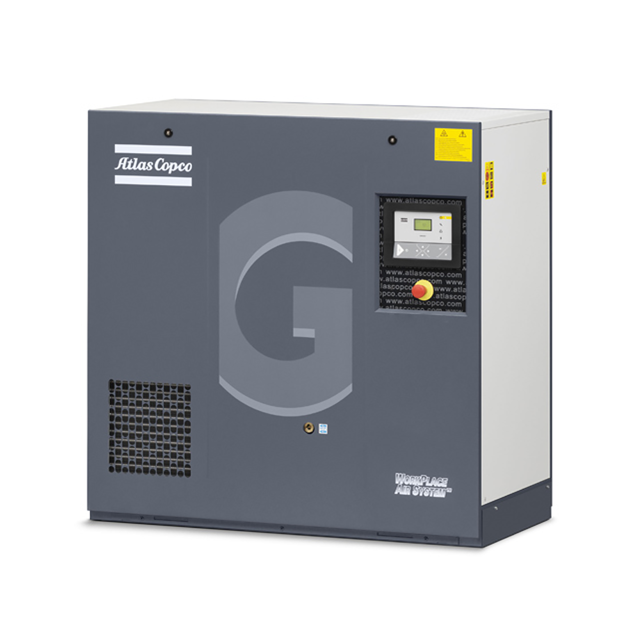

Atlas Copco Oil-Injected Rotary Screw Compressor GA7 FF

Warning: Ensure the compressor is stopped and the voltage is switched off before proceeding

Compressor stopped and air outlet valve closed

Enter the force F needed to create a deflection of 5 mm (0.2 in)

Does the force correspond to the data in the table

Sign off on the belt tension check

Warning: Never remove the element while the compressor is running

For minimum downtime, replace the dirty element by a new one

Discard the element when damaged

Stop the compressor. Switch off the voltage

Cover of air filter (AF) removed by turning it anti-clockwise

Enter the current oil level in the collector

If the collector is nearly full, follow the next steps

Deliver the oil to the local oil collection service

Sign off on the oil level check

Refrigeration dryers of ID type contain refrigerant HFC. When handling refrigerant, all applicable safety precautions must be observed.

Contact of refrigerant with the skin will cause freezing. Special gloves must be worn. If contacted with the skin, the skin should be rinsed with water. On no account may clothing be removed.

Fluid refrigerant will also cause freezing of the eyes; always wear safety glasses.

Refrigerant is harmful. Do not inhale refrigerant vapours. Check that the working area is adequately ventilated.

Be aware that certain components such as the refrigerant compressor and the discharge pipe can become quite hot (up to 110 °C - 230 °F). Therefore, wait until the dryer has cooled down before removing the panels.

Before starting any maintenance or repair work, switch off the voltage and close the air inlet and outlet valves.

Did you follow all the safety precautions?

Sign here to confirm that you have followed all the safety precautions.

Stop the compressor, close the air outlet valve and switch off the voltage

Remove the front panel and the right panel

Adjust the belt tension by turning nuts

Enter the force F needed to create a deflection of 5 mm (0.2 in)

Sign off on the belt tension adjustment
