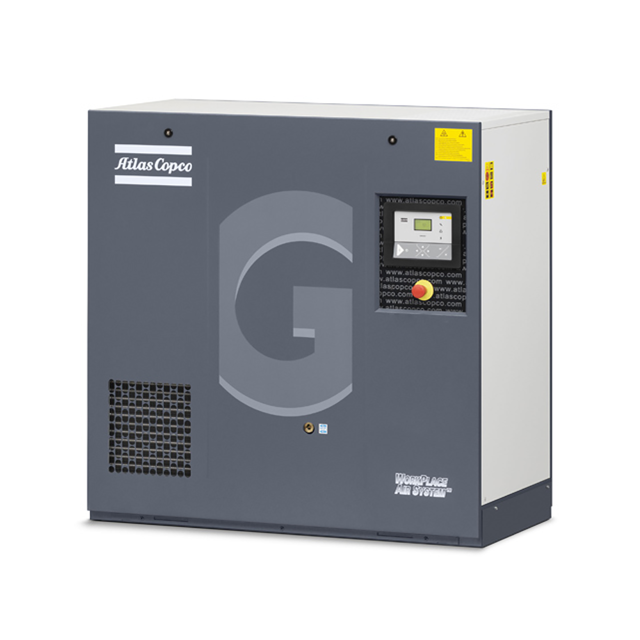

Atlas Copco Oil-Injected Rotary Screw Compressor GA5HYDR

Warning: Never remove the element while the compressor is running

For minimum downtime, replace the dirty element by a new one

Discard the element when damaged

Compressor stopped and voltage switched off?

Cover of air filter (AF) removed by turning it anti-clockwise?

Air filter service warning reset?

If oil level is nearly full, proceed with the following steps

Upload a photo of the disconnected oil tube

Name of the local oil collection service

Sign off on the oil level check and oil delivery

Stop the compressor, close the air outlet valve and switch off the voltage

Remove the front panel and the right panel

Release the belt tension by loosening nuts

Tension the belts as described above

Check the belt tension after 50 running hours and adjust if necessary

Is strainer cleaning necessary?

Warning: This procedure requires trained personnel with PPE!

All parts under the coolers covered?

Dirt removed from the coolers with a fibre brush?

Note: Never use a wire brush or metal objects.

Cleaned with an air jet in the reverse direction to normal flow?

Enter the air pressure used for cleaning
