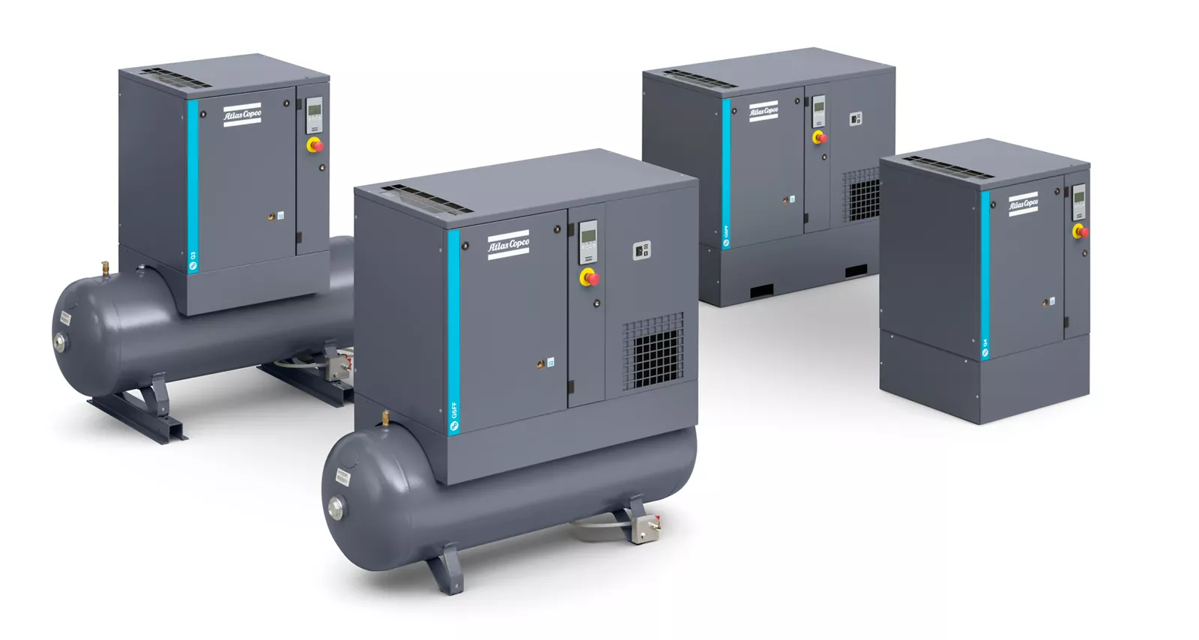

The Atlas Copco Oil Injected Rotary Screw Compressor G4 is a high-performance industrial compressor designed for reliable and efficient operation. Ideal for various applications, this model ensures optimal air delivery while minimizing energy consumption, making it a preferred choice for businesses seeking durability and efficiency in their compressed air solutions.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Atlas Copco Oil Injected Rotary Screw Compressor G4

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Atlas Copco Oil Injected Rotary Screw Compressor G4

Create an account to install this asset package.

Maintenance Plans for Atlas Copco Oil Injected Rotary Screw Compressor Model G4

Integrate maintenance plans directly into your work orders in MaintainX.

3 Monthly PDX Filter Maintenance

Check the service indicator

Is filter replacement necessary?

Upload a photo of the replaced filter

Sign off on the filter maintenance

Run this procedure

8000 Hourly Belt Replacement

Warning: Ensure the compressor is stopped, the air outlet valve is closed and the voltage is switched off.

For Full-Feature versions: also stop the dryer.

Remove the front panel of the compressor housing.

Remove the side, back and top panels of the compressor housing.

Loosen the 4 bolts by one turn.

Release the belt tension by loosening tensioning nut.

Remove the fan cowl.

Remove the belt via the fan cowl opening. Install the new belt via the same opening.

Tension belt as described above.

Run this procedure

1000 Hourly Belt Tensioning Check

Warning: Ensure the compressor is stopped and the voltage is switched off before starting the procedure

Compressor stopped and air outlet valve closed

For Full-Feature versions: Dryer stopped

Front panel of the compressor housing removed

Side, back and top panels of the compressor housing removed

4 bolts loosened by one turn

Belt tension adjusted by turning tensioning nut

Tension is correct when a force of 50 N (11.25 lbf) applied at the midpoint of the belt causes a deflection of 6 mm (0.23 in)

Bolts retightened

Run this procedure

Oil Injected Rotary Screw Compressor Maintenance

For Full-Feature versions: Inspect the condenser of the dryer

Clean if necessary

Check the operation of sensors, electrical interlockings and components

Test the temperature shut-down switch

Inspect the air receiver

The air receiver must no longer be used and must be replaced if the wall thickness is less than the minimum value, specified in the technical documentation of the air receiver;

Run this procedure

4000 Hourly Air Filter Replacement

WARNING: Ensure the compressor is stopped, the air outlet valve is closed, and the voltage is switched off before starting.

Compressor stopped and air outlet valve closed?

Voltage switched off?

Front panel and top panel of the compressor housing removed?

Filter cover (AF) unscrewed and filter element removed?

Old air filter element discarded?

New element fitted and filter cover screwed on?

Top and front panels refitted?

Enter the current hour reading of the compressor

Run this procedure
