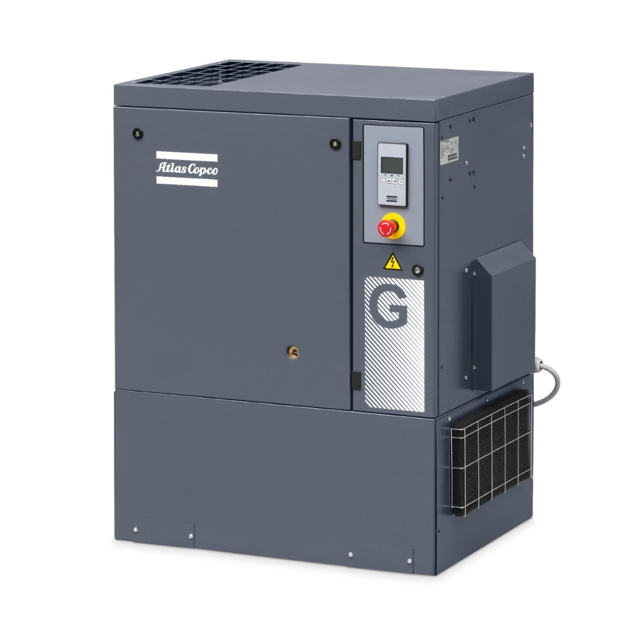

Atlas Copco Oil-Injected Rotary Screw Compressor 8152103845

Change the oil if RIF Ndurance is used

Check and, if needed, replace the belts

Stop the compressor, close the air outlet valve and switch off the voltage

Depressurise the compressor by unscrewing filler plug one turn to permit any pressure in the system to escape

Remove the plug after the system is depressurised

Depressurise the air receiver by opening drain valve

Remove plug, drain the oil by opening drain valve

Close the valve and refit the plug after draining

Deliver the drained oil to the local oil collection service

Remove oil filter and separator

Remove any dirt from the air cooler (Ca)

Avoid using a wire brush or metal objects

Sign off on the air cooler cleaning

After stopping, drain the condensate from the air receiver

For condensate draining use manual drain valve

Sign off on the daily inspection

Open drain valves and the manual drain valve

Unscrew filler plug one turn to permit any pressure in the system to escape

CAUTION! If the valve does not open at the set pressure stamped on the valve, replace the valve. No adjustments are allowed. Never run the compressor without a safety valve.

Test the valve on a separate compressed air line

Does the valve open at the set pressure?
