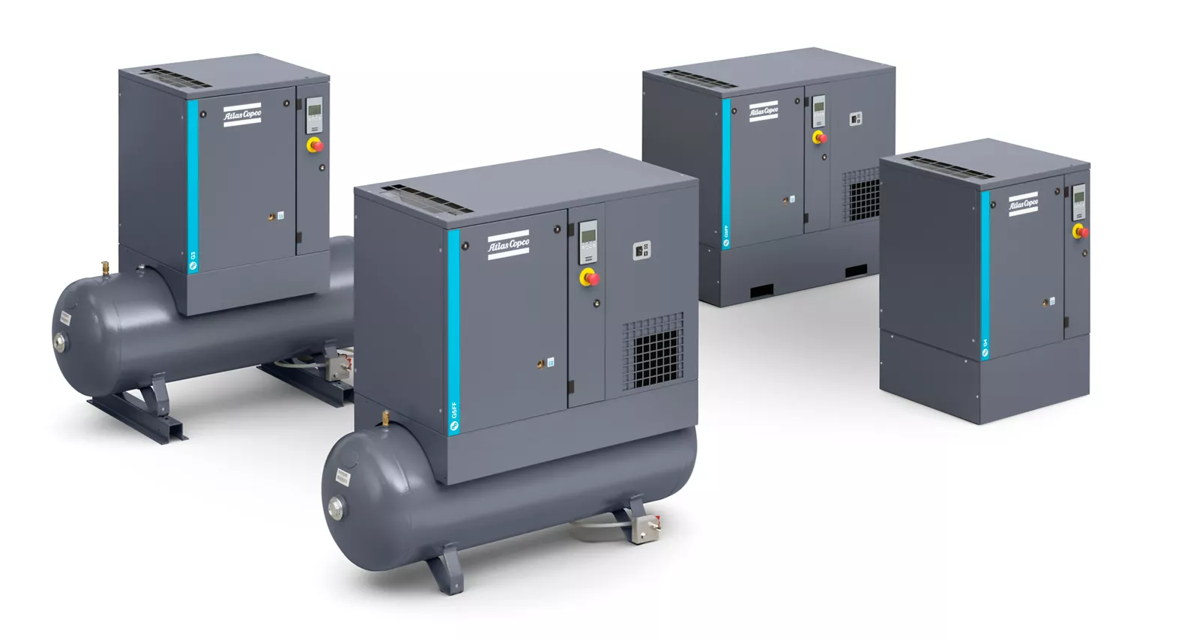

The Atlas Copco Oil Injected Rotary Screw Compressor is a reliable and efficient solution for industrial air compression needs. Model 8152103843 is designed for optimal performance, ensuring minimal downtime and maintenance while delivering high-quality compressed air for various applications.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Atlas Copco Oil Injected Rotary Screw Compressor 8152103843

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Atlas Copco Oil Injected Rotary Screw Compressor 8152103843

Create an account to install this asset package.

Maintenance Plans for Atlas Copco Oil Injected Rotary Screw Compressor Model 8152103843

Integrate maintenance plans directly into your work orders in MaintainX.

1 Daily Oil Injected Rotary Screw Compressor Service

Check the oil level

Drain the condensate from the air receiver after stopping

Apply manual drain valve for drain condensation

Drain condensate from the oil separator vessel every 50 Hours / 1 Week

Check the belt tension after 50 running hours

Run this procedure

1000 Hourly Belt Tensioning Check

Warning: Ensure the compressor is stopped and the voltage is switched off before starting the procedure

Compressor stopped and air outlet valve closed

For Full-Feature versions: Dryer stopped

Front panel of the compressor housing removed

Side, back and top panels of the compressor housing removed

4 bolts loosened by one turn

Belt tension adjusted by turning tensioning nut

Enter the deflection of the belt in mm when a force of 50 N is applied at the midpoint

Bolts retightened

Run this procedure

4000 Hourly / 1 Yearly Roto-Inject Fluid Ndurance Oil Change

Atlas Copco's Roto-Inject Fluid Ndurance is a premium mineral oil based 4000 hours lubricant, specially developed for use in single stage oil-injected screw compressors running in mild conditions.

Its specific formulation keeps the compressor in excellent condition.

Roto-Inject Fluid Ndurance can be used for compressors operating at ambient temperatures between 0 ̊C (32 ̊F) and 40 ̊C (104 ̊F). If the compressor is regularly operating in ambient temperatures between 40 °C and 46 °C (115 °F), it is recommended to use Roto Synthetic Fluid ULTRA or Roto Synthetic Fluid XTEND DUTY.

Select the ambient temperature range

Select the element outlet temperature range

Select the exchange interval

Sign off on the oil change

Run this procedure

8000 Hourly Belt Replacement

Stop the compressor, close the air outlet valve and switch off the voltage

For Full-Feature versions: also stop the dryer

Remove the front panel of the compressor housing

Remove the side, back and top panels of the compressor housing

Loosen the 4 bolts by one turn

Release the belt tension by loosening tensioning nut
