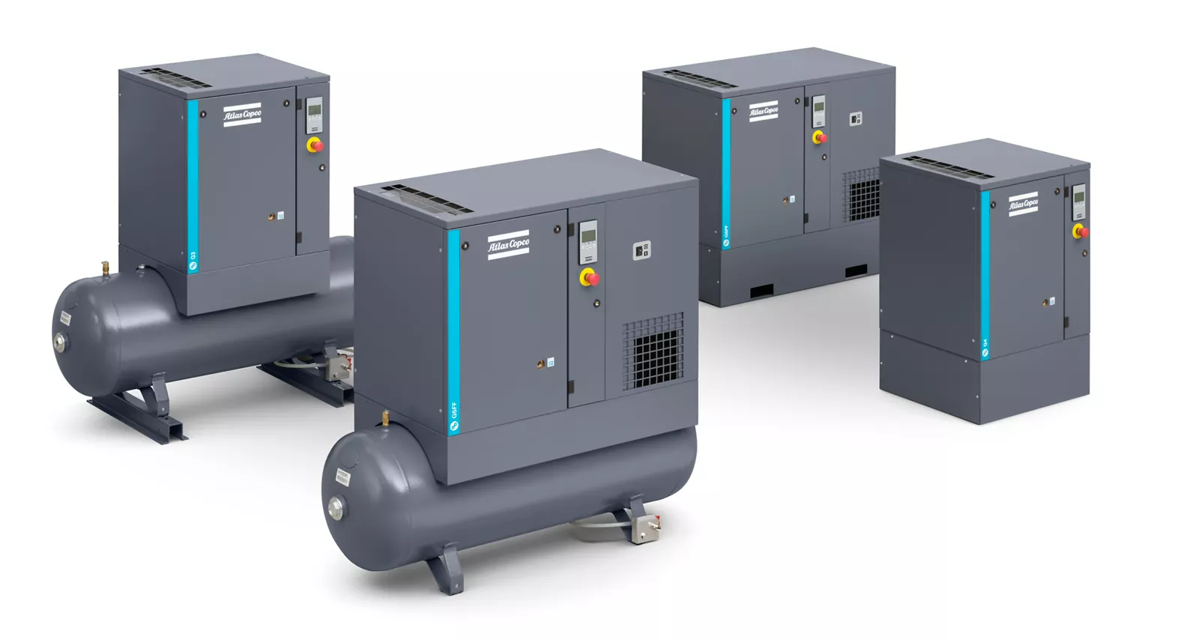

Atlas Copco Oil Injected Rotary Screw Compressor 8152103797

Stop the compressor, close the air outlet valve and switch off the voltage

Remove the front and top panels

Depressurize the compressor by unscrewing filler plug one turn to permit any pressure in the system to escape

Remove the plug after the system is depressurized

Depressurize the air receiver by opening drain valve

Drain the oil by opening drain valve

Deliver the drained oil to the local oil collection service

Warning: Only trained personnel should perform this procedure

Is the valve tested on a separate compressed air line?

Is the compressor stopped before removing the valve?

Is the air outlet valve closed?

Are the drain valves opened (if applicable)?

Is the filler plug unscrewed one turn to permit any pressure in the system to escape?

WARNING: Ensure the compressor is stopped, the air outlet valve is closed and the voltage is switched off before starting the procedure.

Compressor stopped and voltage switched off?

Front panel and top panel of the compressor housing removed?

Filter cover (AF) unscrewed and filter element removed?

Old air filter element discarded?

New element fitted and filter cover screwed on?

Enter the current hour reading of the compressor

Atlas Copco's Roto-Inject Fluid Ndurance is a premium mineral oil based 4000 hours lubricant, specially developed for use in single stage oil-injected screw compressors running in mild conditions.

Its specific formulation keeps the compressor in excellent condition.

Roto-Inject Fluid Ndurance can be used for compressors operating at ambient temperatures between 0 ̊C (32 ̊F) and 40 ̊C (104 ̊F).

If the compressor is regularly operating in ambient temperatures between 40 °C and 46 °C (115 °F), it is recommended to use Roto Synthetic Fluid ULTRA or Roto Synthetic Fluid XTEND DUTY.

Select the ambient temperature range

Select the element outlet temperature range

Warning: Ensure the compressor is stopped and the voltage is switched off before proceeding.

Compressor stopped and air outlet valve closed

For Full-Feature versions: Dryer stopped

Front panel of the compressor housing removed

Side, back and top panels of the compressor housing removed

Enter the force applied at the midpoint of the belt

Enter the deflection of the belt
