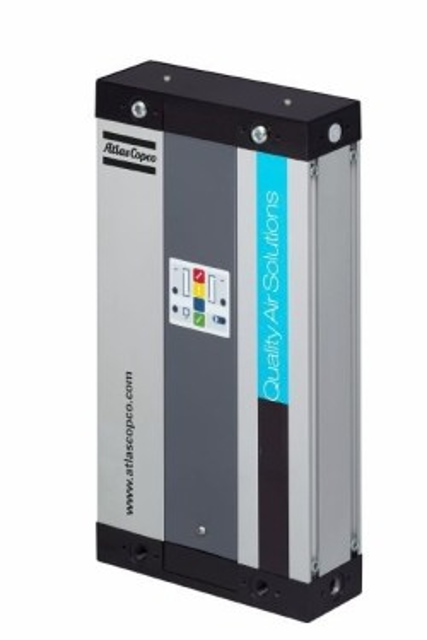

Atlas Copco Heatless Adsorption Compressed Air Dryer CD 12

Create an account to install this asset package.

Maintenance Plans for Atlas Copco Heatless Adsorption Compressed Air Dryer Model CD 12

Integrate maintenance plans directly into your work orders in MaintainX.

Silencer Cleaning

Warning: Silencer removal is best carried out during diaphragm replacement

Disconnect silencer from valve block

Remove silencer from dryer

Clean threads on silencer

Silencer can be thoroughly cleaned in warm soapy water. Do not use sharp instruments or tools

Ensure silencer is thoroughly clean and dry

Replace silencer by following the above procedure in reverse

Sign off on the silencer cleaning

Run this procedure

12000 Hourly Desiccant Cartridge Replacement

Warning: Follow the procedure as shown in the diagram for both simplex and duplex units.

Desiccant label completed

Procedure repeated on both towers

IMPORTANT! Do not fully tighten retaining bolts until all towers have been serviced.

All bolts tightened to torque 5 Nm after servicing all towers

Desiccant cartridges disposed in accordance with local waste regulations

Sign off on the desiccant cartridge replacement

Run this procedure

Front Panel Replacement

Dryer with front facial panel fitted

Remove single retaining screw

Remove front facial panel by tilting outwards and downwards

Dryer with front facial panel removed

Re-fit front facial panel by insertion of tongue into groove and pushing upwards and inwards

Replace single retaining screw

Sign off on the front panel replacement

Run this procedure

Purge Plug Replacement

NOTE! Duplex units utilise 2 purge plugs. The plugs must be changed together. Removal of the front and rear panels is necessary for this procedure

Remove front panel of dryer as described in §11.5 and locate purge plug in upper valve block

Remove purge plug fixing screw from upper valve block

Remove purge plug from port in upper valve block downwards

Orifice in purge plug can be identified by reference number on the front face

Re-fit purge plug after ensuring suitability and correct size for operating conditions. ‘O’ rings must be in good condition and slightly lubricated with the silicone free agent before fitting

Replace and tighten purge plug fixing screw in upper valve block;

Run this procedure

Diaphragm Replacement

Warning: Ensure the machine is powered off before starting the procedure

Front panel removed as described in §11.5

Upper and lower bonnets located

Lower bonnets removed by means of four fixing screws

Bonnet separated from valve block

Tubing disconnected from fitting on bonnet

Diaphragm assembly to be changed located

Diaphragm assembly removed

Diaphragm and bonnet components replaced by following above procedure in reverse
