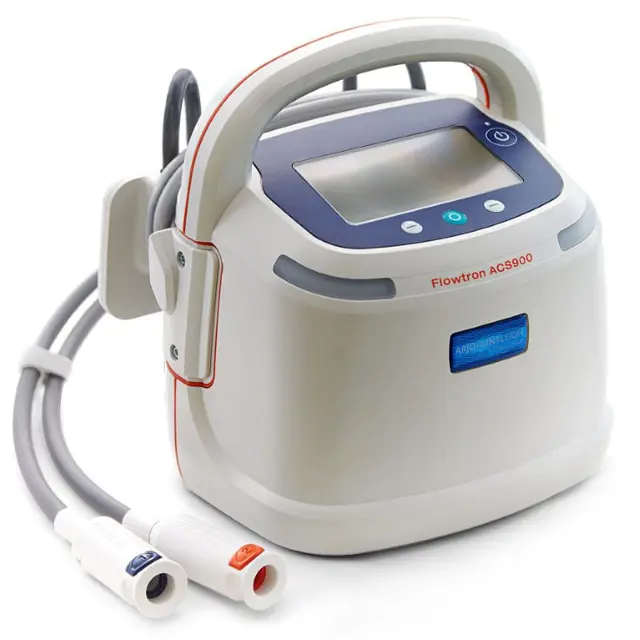

ArjoHuntleigh Compression Pump System Flowtron ACS900

Ensure the following safety precautions are taken before starting the procedure

Service the pump every 24 months or after a major repair

Garment recognition test in accordance with Chapter 7, Page 36, Section 2

Soak test in accordance with Chapter 7, Page 39, Section 4

Battery age and charge/recharge cycles (730: and 731:)

Ensure equipment has been adequately decontaminated

Ensure the pump unit is isolated from the mains/power supply

Ensure anti-static protection is used

Inspect for damage, wear, and potential faults

Remove the mains power cord from the pump

Lay the pump face down on a flat surface

Ensure no garments are connected to either pump tubeset assembly.

Plug the pump into an electrical outlet and apply mains power.

Verify the pump completes a self-test routine successfully.

Does the pump enter Standby mode after the self-test?

Connecting and Testing Garments

Connect a rolled-up foot garment to each pump tubeset assembly and confirm connection and garment types on display.

Press the Middle Control button to start the pump.

Do the green LEDs illuminate and does the compressor start?

Ensure the equipment has been adequately decontaminated.

Isolate the pump unit from the mains/power supply by removing the plug from the wall socket.

Ensure the pump case is closed to avoid electrical shock hazards.

Ensure personnel are trained in ESD methods and have appropriate equipment and anti-static protection.

Ensure all covers are fitted correctly before cleaning the pump.

Stand the pump upright to prevent cleaning solution from collecting on the display panel or tubeset assemblies.

Use a soft cloth to remove the cleaning solution from the pump.

Ensure the unit is isolated from the power supply by removing the cord plug from the wall outlet.

Lay the pump face down on a flat surface.

Removing the Rear Case Assembly

Remove the mains power cord retainer.

Pull the mains power cord IEC connector out of the IEC connector inside the pump.

Remove the bottom centre screw (different Torx screw thread).

Remove the six screws from the rear case.

Lift the rear case to reveal interconnections.
