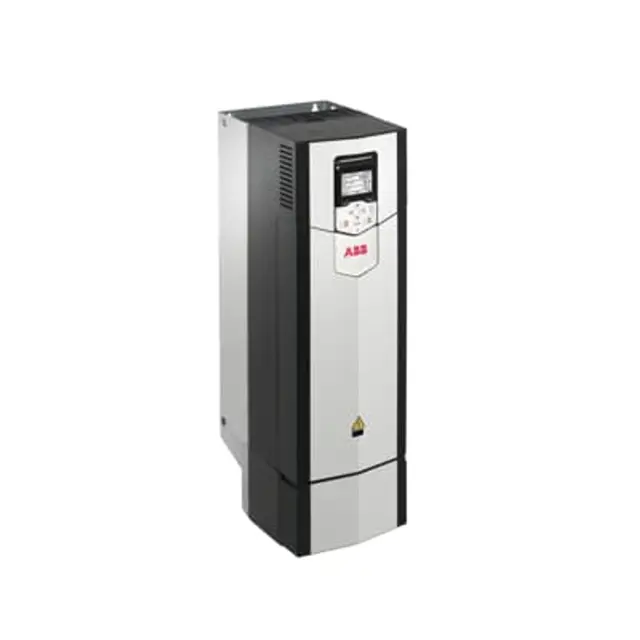

ABB ABB AC Drive ACS880-01-302A-5 ACS880-01-302A-5
Need answers fast?
Explore the manual using AI.
The ABB AC Drive ACS880-01-302A-5 is a high-performance industrial drive designed for various applications. Known for its reliability and efficiency, this model enhances motor control while providing advanced features for optimal performance and energy savings. Ideal for demanding environments, it ensures seamless integration and operation.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for ABB ABB AC Drive ACS880-01-302A-5 ACS880-01-302A-5
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
ABB ABB AC Drive ACS880-01-302A-5 ACS880-01-302A-5
Create an account to install this asset package.
Maintenance Plans for ABB ABB AC Drive ACS880-01-302A-5 Model ACS880-01-302A-5
Integrate maintenance plans directly into your work orders in MaintainX.
ZCU-12 Memory Unit Replacement
Warning: Do not remove or insert the memory unit when the control unit is powered.
Drive stopped and electrical safety precautions followed
Upload a photo of the memory unit before removal
Clip at the side of the memory pulled up
Upload a photo of the memory unit after removal
Memory unit taken off
Upload a photo of the new memory unit ready for installation
Memory unit installed in reverse order
Upload a photo of the installed memory unit
9 Years Main Cooling Fan Replacement
Stop the drive and do the steps in section Electrical safety precautions before you start the work.
Undone the two mounting screws of the fan mounting plate
Turned the mounting plate downwards
Disconnected the fan power supply wires
Removed the fan mounting plate
Removed the fan by undoing the two mounting screws
Installed the new fan in reverse order. Made sure that the fan blows upwards
Reset the counter (if used) in group 5 in the primary control program
Sign off on the fan replacement
Drive Replacement
Warning: Follow the Electrical safety precautions before starting the work.
Drive stopped?
Front covers removed?
For frames R6 to R9: Side plates of the cable entry box removed?
Power and control cables disconnected?
Screw(s) that fasten the drive module to the cable entry box undone?
Two screws or bolts that attach the drive module to the wall from top undone?
Two screws or bolts which attach the drive module and cable entry box to the wall undone?
Drive lifted off?
9 Years Auxiliary Cooling Fan Replacement
Drive stopped and electrical safety precautions followed
Lower front cover removed
Control panel power supply wires unplugged from the control unit terminal X13
Auxiliary cooling fan power supply wires unplugged from the terminal X208:FAN1
Upper front cover removed
Retaining clips released
Fan lifted up
New fan installed with arrow pointing up
Sign off on the fan replacement
Capacitors Maintenance
Warning: Capacitor maintenance should be performed by trained personnel only.
Check if the capacitors are damaged
If capacitors are damaged, contact ABB immediately.
Measure the surrounding air temperature
If the temperature is high, take measures to decrease it.
Enter the last date the drive was powered
If the drive has not been powered for a year or more, the capacitors must be reformed.
Sign off on the capacitor maintenance
Parts for ABB ABB AC Drive ACS880-01-302A-5 ACS880-01-302A-5
Access the parts list for your equipment in MaintainX.
Semiconductor Fuse
170M6609
Fuse
OFAF2H500
UL Fuse
JJS-400
Semiconductor Fuse
170M6009
Semiconductor Fuse
170M6409
Semiconductor Fuse
170M6609
Fuse
OFAF2H500
UL Fuse
JJS-400
Semiconductor Fuse
170M6009
Semiconductor Fuse
170M6409
Semiconductor Fuse
170M6609
Fuse
OFAF2H500
UL Fuse
JJS-400
Semiconductor Fuse
170M6009
Semiconductor Fuse
170M6409
