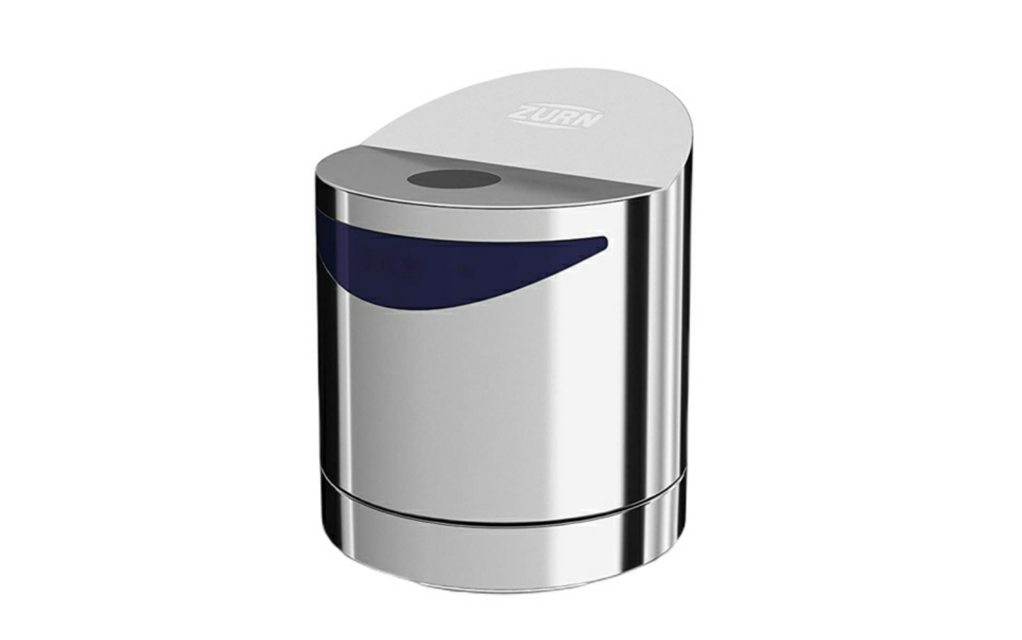

Zurn Industries Driven Type Flushometer ZER6000AV-HET-TM
Create an account to install this asset package.
Integrate maintenance plans directly into your work orders in MaintainX.
Sensor Angle Adjustment
Preparation
Turn off control stop using a flat head screwdriver by turning clockwise.
Use the electronic override button to flush the water out of the flush valve.
Locking Ring Adjustment
Ensure the strap wrench and locking ring are completely dry for optimal grip.
Mark the original position of the locking ring relative to the valve body with tape or marker.
Was the locking ring loosened using the strap wrench?
If unable to loosen, remove the valve cap from the valve head as shown in Step 4.1 & 4.2 of the Battery Installation Section.
Use the supplied strap wrench or a large wrench on the flats of the locking ring to loosen it.
Flushometer Cleaning
General Cleaning Instructions
Clean chrome plated surfaces with mild soap and water
Dry chrome plated surfaces after cleaning
Ensure no abrasive or chemical cleaners are used
Ensure sensor lenses are protected from cleaning chemicals
Maintenance for Cold and Freezing Conditions
Shut off the main water supply
Drain water from the system
Remove stop valve cap and internals to drain water from flush valve
Sensor Range Adjustment
Preparation
Place a piece of cardboard or a light-colored target at desired detection range away from sensor
Ensure target is positioned correctly for water closet applications
Calibration Mode
Place the Zurn Magic Magnet on top flat surface
Did the red status LED illuminate continuously for 5 seconds?
Did the status LED quickly flash and then begin flashing once a second?
Ensure target is in position no later than the end of the 2nd flash after the first quick flashes
Setting Detection Range
Locking Ring Replacement
Threading the Locking Ring
Take the additional locking ring from the retrofit kit box and thread it onto the valve body to ensure the threads match.
Did the additional locking ring thread onto the valve body successfully?
Diaphragm Kit and Valve Cap Removal
Remove the diaphragm kit from the valve head if attached.
Remove the valve cap from the valve head following Steps 4.1 & 4.2 of the Battery Installation Section.
Removing and Installing Locking Ring
Using a Phillips head screwdriver, turning counter clockwise remove the 3 mounting screws shown in Figure 19 and remove the ring insert from the manifold.
Remove the existing locking ring from the manifold and install the new locking ring onto the manifold.
Diaphragm Maintenance
Preparation
Turn off control stop using a flat head screwdriver by turning clockwise.
Use the electronic override button to flush the water out of the flush valve.
Valve Head Removal
Ensure strap wrench and locking ring are completely dry for optimal grip.
Mark down locking ring's original position relative to valve body.
Uninstall valve head by loosening locking ring using strap wrench, turning counter-clockwise.
Diaphragm Kit Maintenance
Choose the maintenance action for the diaphragm kit
Access the parts list for your equipment in MaintainX.
Control Stop Repair Kit For 1” And 3/4”
P6000-D-SD
Seal Seat For 1” And 3/4”
P6000-D42
VP Control Stop Repair Kit For 1” And 3/4”
P6000-D-VP
Sweat Solder Connection With Cast Wall Flange
P6000-YBYC
Adjustable Tailpiece For Standard Flush Valve
P6000-J1
Control Stop Repair Kit For 1” And 3/4”
P6000-D-SD
Seal Seat For 1” And 3/4”
P6000-D42
VP Control Stop Repair Kit For 1” And 3/4”
P6000-D-VP
Sweat Solder Connection With Cast Wall Flange
P6000-YBYC
Adjustable Tailpiece For Standard Flush Valve
P6000-J1
Control Stop Repair Kit For 1” And 3/4”
P6000-D-SD
Seal Seat For 1” And 3/4”
P6000-D42
VP Control Stop Repair Kit For 1” And 3/4”
P6000-D-VP
Sweat Solder Connection With Cast Wall Flange
P6000-YBYC
Adjustable Tailpiece For Standard Flush Valve
P6000-J1
