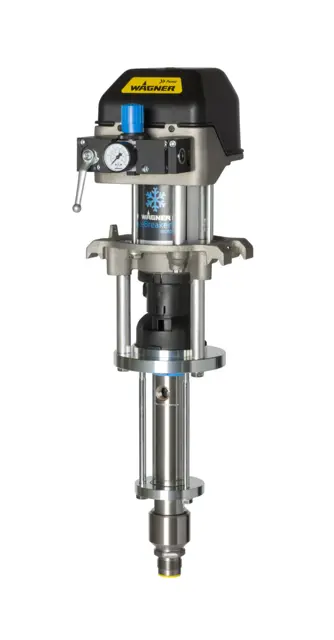

Wagner Icebreaker Puma 15-70

Ensure cleaning is performed by qualified and trained personnel

Inform personnel of specific hazards during training

Identify potential hazards during cleaning work

Ensure no remaining product dries on and sticks to the device

Empty system in a controlled manner

Straight Inline Filter Maintenance

Flush the pump and inline filter using the spray gun to maximize flow.

Empty the pump in a controlled manner.

Place the grounded collection tank under the inline filter.

Is there a swivel joint mounted?

Remove the hose if no swivel joint is mounted.

Unscrew the inlet and outlet housing with two size 19 wrenches.

Does the inline filter have any leaks?

Inspection of Liquid Ejection Devices

Check liquid ejection devices for safe working conditions

Was the inspection conducted by an expert?

Are the shut down devices currently in operation?

Suspend examination of shut down devices if not in operation

Maintenance Personnel Guidelines

Ensure maintenance is performed by qualified and trained personnel.

Inform personnel of specific hazards during training.

Potential hazards during maintenance work

Pre-Maintenance Safety Measures

Relieve pressure from the spray gun, high-pressure hoses, and all devices.

Secure the spray gun against actuation.

Switch off the energy and compressed air supply.

Disconnect the control unit from the mains.

Check hoses, tubes, and couplings

Product Hoses, Pipes, and Couplings

Inspect hoses, pipes, and couplings for wear and tear

Replace any damaged hoses, pipes, or couplings if necessary

Record any wear, tear, or damage observed
