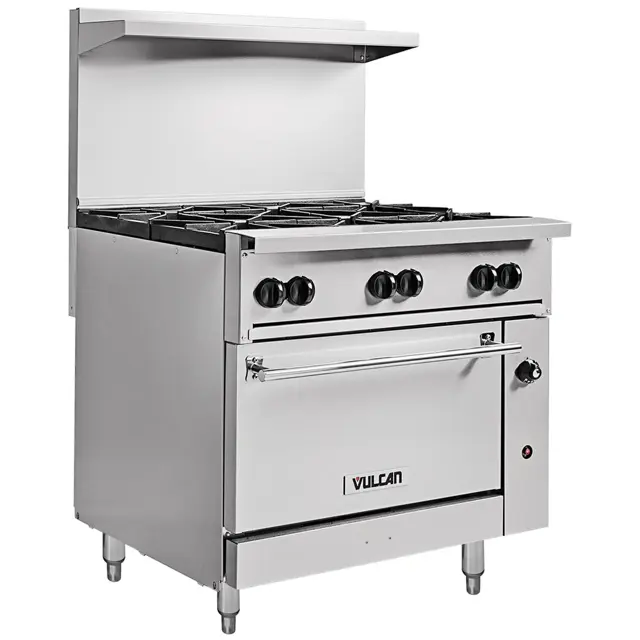

VULCAN Gas Range G36

Create an account to install this asset package.

Maintenance Plans for VULCAN Gas Range Model G36

Integrate maintenance plans directly into your work orders in MaintainX.

Gas Range Adjustment

SERVICE PROCEDURES AND ADJUSTMENTS

WARNING: CERTAIN PROCEDURES IN THIS SECTION REQUIRE ELECTRICAL TEST OR MEASUREMENTS WHILE POWER IS APPLIED TO THE MACHINE.

EXERCISE EXTREME CAUTION AT ALL TIMES. IF TEST POINTS ARE NOT EASILY ACCESSIBLE, DISCONNECT POWER AND FOLLOW LOCKOUT / TAGOUT PROCEDURES, ATTACH TEST EQUIPMENT AND REAPPLY POWER TO TEST. PILOT FLAME HEIGHT

Top Burners

To adjust the pilot flame height of the top burners, locate the pilot adjustment screws found on the front manifold pipe. It is not necessary to remove the manifold cover as adjustment access holes have been provided in the panel.

1. Locate the pilot adjustment screw located behind the adjustment access hole in the panel.

2. Rotate the screw clockwise to decrease and counterclockwise to increase the flame height.

Broiler/Griddle

To adjust pilot flame height of broiler/griddle, locate the pilot adjustment screws found on the broiler/ griddle manifold pipe. It is not necessary to remove the manifold cover, as adjustment access holes have been provided in the panel.

Run this procedure

Gas Range Check

OVEN BURNER NOZZLE AND ORIFICE CHECK

The oven burner nozzle is mounted between the oven gas supply tubing and the u-burner assembly.

If burner operation seems poor and other systems have been checked, remove the burner nozzle and check for blockage or damage.

1. Turn off burners and oven.

2. Disconnect unit from gas flow and allow to cool completely.

3. Remove the kick plate as outlined under COVERS AND PANELS.

4. Remove the burner nozzle.

5. Check for blockage or damage.

NOTE: Nozzle blockage can be cleaned or nozzle replaced. Use high-pressure water and tip cleaner to clean the nozzle. Replace the nozzle if damaged or blockage cannot be removed. Check nozzle for correct orifice size and BTU rating. Use a flow meter (available from Vulcan-Hart Service Parts Depots, Part #495) to check BTU rate. See flow meter instructions for proper installation and use.

Run this procedure

Gas Range Parts Replacement

Replacement of Parts:

COVERS AND PANELS

WARNING: DISCONNECT THE ELECTRICAL POWER TO THE MACHINE AND FOLLOW LOCKOUT / TAGOUT PROCEDURES.

Oven Manifold Cover (Models 60, 260, and 481)

1. Rotate the yellow gas shut-off valve to the OFF position and allow range to cool.

2. Loosen the setscrew in the side of the burner control knobs and oven control knob and remove knobs.

3. Remove screws holding manifold cover in place and remove manifold cover.

4. Reverse the procedure to install the oven manifold cover.

Broiler Manifold Cover

Run this procedure
