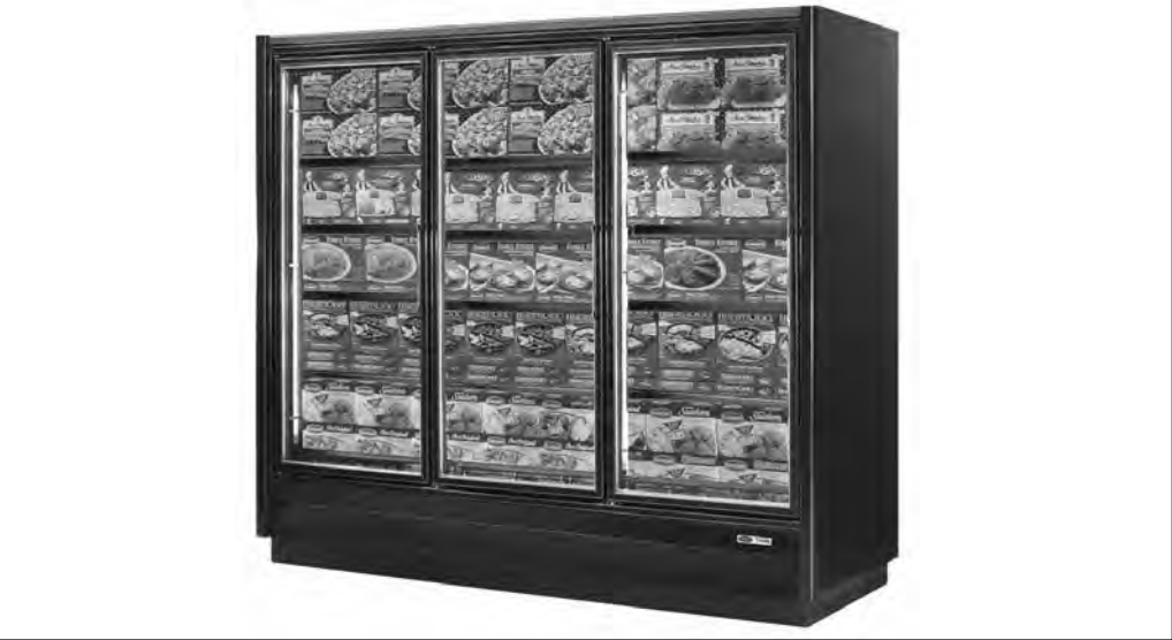

Tyler Refrigeration Glass Door Display A5NGNT

Unplug fan from fan power supply plug located on the front face of the fan housing

Remove the fan blade nut and fan blade

Remove the two mounting bolts and remove the fan assembly from the fan housing

Remove the three fan motor mounting screws from the back of the fan motor

Install the three fan motor mounting screws to the back of the fan motor

Ensure all necessary tools and materials are available

Is the door hinge obstructing the frame screws?

Back-out and retain the frame screws securing the J-strip

Remove the door hinge if obstructing the frame screws

Score and remove the clear silicone bead with a razor blade

Remove the J-strip and excess silicone

Remove the damaged edge trim piece starting from the top

Ensure the refrigeration unit is turned off before cleaning.

Remove all products from the case.

Use mild detergent and warm water to wipe out the inside of the case.

Avoid using abrasive cleaners inside the case.

Clean the interior glass to reduce fogging and increase visibility.

Wash down all glass doors with glass cleaner.

Remove fasteners holding the heater to the floor

Remove the front heater by pulling the retaining clip away from the coil and sliding the heater out

Remove the rear heater by raising the heater retaining clip

Ensure retaining clips are free of the coil

Slide the heater up with the retaining clip

Ensure the system is powered off

Remove the right end coil cover

Remove the cap from the bottom of the valve

Adjust the valve stem direction

Measure the suction line temperature at the expansion valve-sensing bulb
