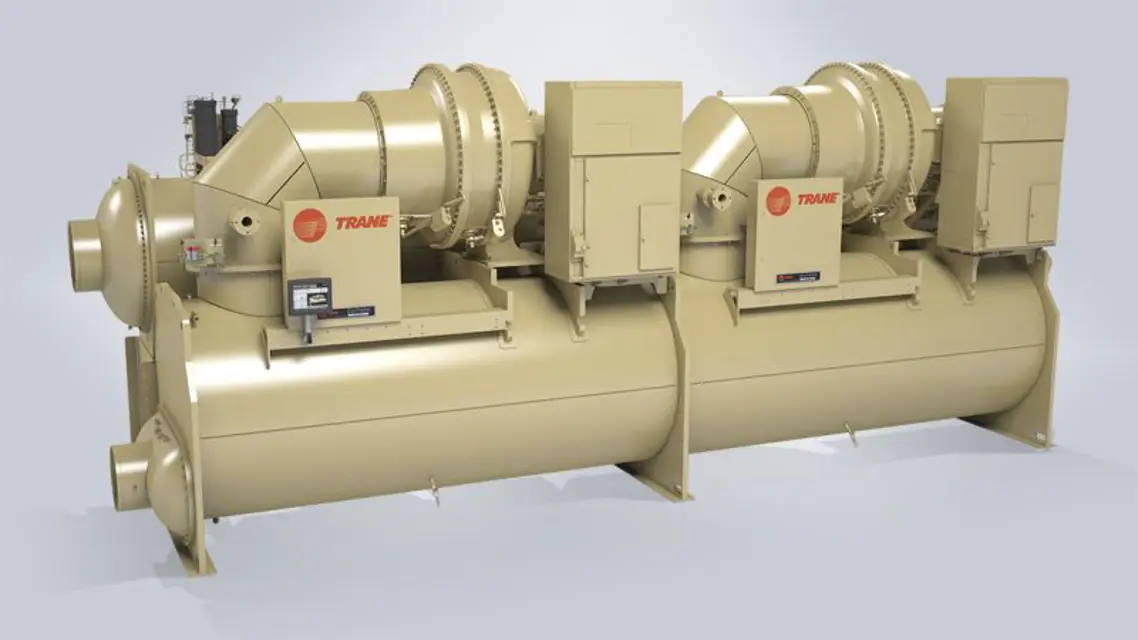

Trane CenTraVac™ Water-Cooled Chiller CVHG - 480-565 - 489 - 050L / 080L

Upload the purge Installation, Operation, and Maintenance manual

Follow maintenance and/or inspection items identified in the manual

Review overall operation of purge

Sign off on the purge unit inspection

NOTICE: Equipment Damage! Mixing refrigerants or oils could result in equipment damage including bearing damage, introduction of acids into the chiller, or continuous purge pump-out in high-head/high ambient applications

CenTraVac chillers are manufactured with different refrigerant/oil systems: 1) chillers using R-123 refrigerant and OIL00022 compressor oil, and 2) chillers using R-514A refrigerant and OIL00334/OIL00335 compressor oil

Verify proper refrigerant and oil for your chiller and do NOT mix refrigerants or oils!

Important: Verify proper refrigerant and compressor oil for your chiller before proceeding!

After the first six months of accumulated operation or after 1000 hours operation—whichever comes first—it is recommended to change the oil and filter

After this oil change, it is recommended to subscribe to the Trane annual oil analysis program rather than automatically change the oil as part of scheduled maintenance

Change the oil only if indicated by the oil analysis. Using an oil analysis program will reduce the chiller’s overall lifetime waste oil generation and minimize refrigerant emissions. The analysis determines system moisture content, acid level, and wear metal content of the oil, and can be used as a diagnostic tool. The oil analysis should be performed by a qualified laboratory that is experienced in refrigerant and oil chemistry and in the servicing of Trane® centrifugal chillers

In conjunction with other diagnostics performed by a qualified service technician, oil analyses can provide valuable information on the performance of the chiller to help minimize operating and maintenance costs and maximize its operating life. A valve is installed next to the oil filter for the purpose of obtaining oil samples

Check chiller for normal operation

Normal pressure readings for ASME condenser

Approximate Evaporator Pressure

Oil Sump Temperature Unit not running

Oil Sump Temperature Unit running

Check the inlet guide vane linkage

Clean and touch-up painted surfaces as needed

Repair deteriorated, torn, or missing insulation

Sign off on the yearly exterior parts maintenance

Contact a qualified service organization to determine when to conduct a complete examination of the unit to discern the condition of the compressor and internal components

Check for evaporator water tube leaks

Check for condenser water tube leaks

Sign off on the yearly chiller maintenance
