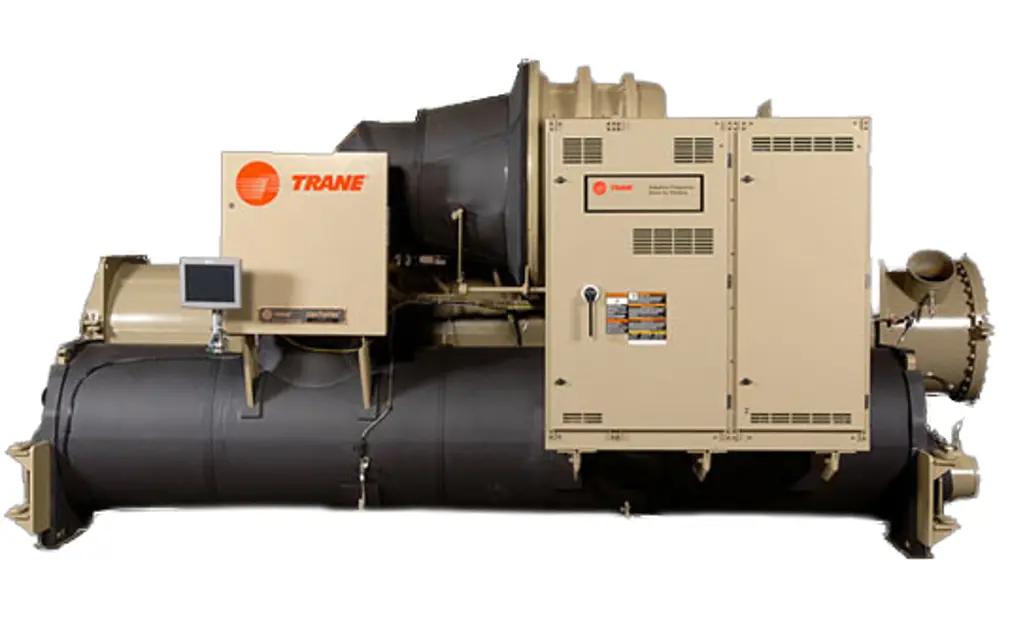

Trane CenTraVac™ Water-Cooled Chiller CVHE - 230-320 - 289 - 050S / 050S

Test appropriate sensors for accuracy

Ensure sensors are properly seated in wells with thermopaste installed

Check evaporator leaving water temperature low temperature cutout setpoint

Condenser high pressure switch check-out

Check adjustment and operation of the inlet guide vane actuator

Sign off on the control circuits inspection

Compare the readings with the values provided in the general maintenance

Check the oil level in the chiller oil sump using the two sight glasses provided in the oil sump head. When the unit is operating, the oil level should be visible in the lower sight glass

NOTICE: Equipment Damage! Mixing refrigerants or oils could result in equipment damage including bearing damage, introduction of acids into the chiller, or continuous purge pump-out in high-head/high ambient applications.

CenTraVac chillers are manufactured with different refrigerant/oil systems: 1) chillers using R-123 refrigerant and OIL00022 compressor oil, and 2) chillers using R-514A refrigerant and OIL00334/OIL00335 compressor oil.

Verify proper refrigerant and oil for your chiller and do NOT mix refrigerants or oils!

Important: Verify proper refrigerant and compressor oil for your chiller before proceeding!

After the first six months of accumulated operation or after 1000 hours operation—whichever comes first—it is recommended to change the oil and filter.

After this oil change, it is recommended to subscribe to the Trane annual oil analysis program rather than automatically change the oil as part of scheduled maintenance.

Change the oil only if indicated by the oil analysis. Using an oil analysis program will reduce the chiller’s overall lifetime waste oil generation and minimize refrigerant emissions.

The analysis determines system moisture content, acid level, and wear metal content of the oil, and can be used as a diagnostic tool. The oil analysis should be performed by a qualified laboratory that is experienced in refrigerant and oil chemistry and in the servicing of Trane® centrifugal chillers.

In conjunction with other diagnostics performed by a qualified service technician, oil analyses can provide valuable information on the performance of the chiller to help minimize operating and maintenance costs and maximize its operating life.

Shut down the chiller once each year to check the items of Optional Accessories

If applicable, lubricate factory-installed gantries

After the first month of operation, inspect Heresite® or Belzona® coated waterboxes; thereafter, inspect as needed

Inspect and lubricate hinged waterboxes

With water flow sensing option, bleed tubing from waterboxes to transformers

Lubricate the vane control linkage bearings, ball joints, and pivot points

Lubricate vane operator tang O- rings

Lubricate the oil filter shutoff valve O-rings

Sign off on the chiller lubrication
