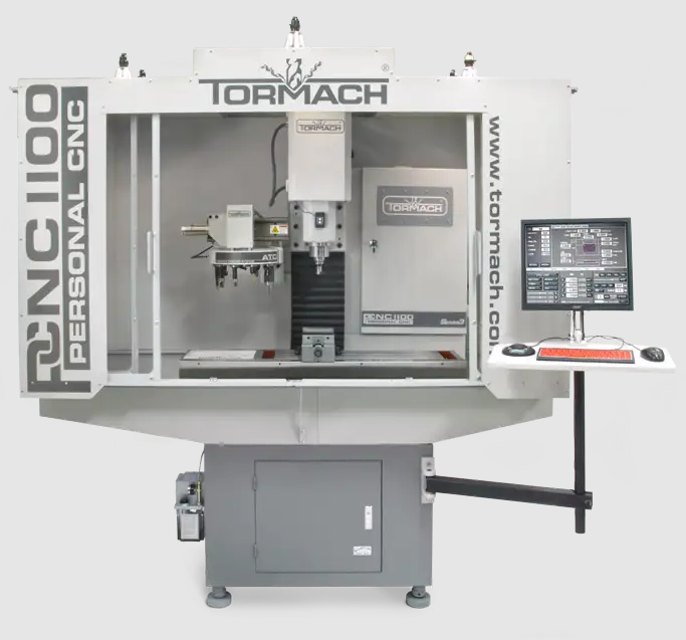

Tormach CNC Milling Machine PCNC1100

Need answers fast?
Explore the manual using AI.

Tormach CNC Milling Machine PCNC1100
Tormach CNC Milling Machine PCNC1100

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Tormach CNC Milling Machine PCNC1100

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Tormach CNC Milling Machine PCNC1100

Tormach CNC Milling Machine PCNC1100

Create an account to install this asset package.

Maintenance Plans for Tormach CNC Milling Machine Model PCNC1100

Integrate maintenance plans directly into your work orders in MaintainX.

Mill Lubrication

Check mark

Warning: This procedure requires trained personnel with PPE!

Check mark

Choose the type of oil used

Check mark

Cleanliness of the cover and surrounding area

Check mark

Presence of proper oil film on way surfaces and ball screws

Check mark

Condition of the X, Y, and Z slideways

Check mark

Condition of the protective bellows

Check mark

Enter the number of operation hours since last lubrication

Check mark

Has the mill stood unused for 48 hours or longer?

Check mark

Condition of the manual pump

Run this procedureArrow right

Angular Contact Bearing Preload Adjustment

Check mark

9.3.4.1 Overview

Check mark

Each axis utilizes a double-nut, pre-loaded ball screw. The pre-load in the ball nut is set at the factory by placing a precision ground spacer between the two ball nuts. Lost motion attributable to the ball screw assembly is less than 0.0004”. Ball nut preload is not operator-adjustable.

Check mark

The ball screw mount bearings are located near the driven (motor) end of each ball screw. These are a pre-loaded angular contact bearing pair and are operator-adjustable. Under typical use, these bearings should be adjusted so that observable lost motion is between 0.0005” to 0.0013”.

Check mark

Figure 9.4 and Figure 9.5 show a cross section of a typical ball screw shaft mount. The ball screw shaft is in the center and the crosshatched section in Figure 9.5 is the axis motor mount that houses the bearings. There are two angular contact ball bearings, forming a pre-loaded pair. The ball screw Cover Plate holds the two outer races together, along with the Spacer that is between them.

Check mark

The inner races are held between the Sleeve (left side) and the shoulder cut into the ball screw shaft (right side). The Sleeve is held against the left inner bearing race by the Adjustment Nut and a Lock Nut. When the Adjustment Nut is screwed tighter toward the bearing pair, the preload increases.

Check mark

Over time, it may become necessary to adjust the ball screw bearing preload to account for bearing wear. The bearing preload will also need to be adjusted if a bearing replacement becomes necessary.

Check mark

Improper ball screw bearing preload will result in either excessive backlash in the mill if it is too loose, or rapid wear and excessive friction if it is too tight. It should be noted that if your ball screw, ball nut, or angular contact bearings are worn, or if your gibs are adjusted too tight, you will not achieve appropriate lost motion values.

Check mark

Figure 9.6 shows how the force of preload is transmitted through the bearings, from the inner race to the outer race. In a preload pair, this force is then transmitted back to the inner race by an opposed bearing. It should be apparent that the correct orientation of the angular contact bearing is critical to the operation.

Check mark

To adjust the angular contact bearing pair preload, the following kit is required (see Figure 9.7):

Run this procedureArrow right

1 Daily Mill Maintenance

Check mark

Check coolant level

Check mark

Check oiler level and top off as needed

Check mark

Retract and release manual oiler plunger each time mill is powered on and after every four hours of operation

Check mark

Clean chips from ways, carriage, and bellows’ covers

Check mark

Spray exposed, non-painted metal surfaces with WD-40® or similar to prevent rust

Check mark

Sign off on the daily mill maintenance

Run this procedureArrow right

Spindle Bearing Adjustment

Check mark

PCNC 1100 only

Check mark

When correctly adjusted for preload, sustained high spindle speed will bring the spindle bearings to about 155°F (68°C). This is a normal condition. Higher preload in the spindle bearings will result in even higher temperatures and excessive wear.

Check mark

NOTE: For information on rebuilding PCNC 1100 spindle cartridges, refer to Tormach service bulletin PCNC 1100 Spindle Rebuild.

Check mark

PCNC 770 only

Check mark

During operation, sustained high spindle speed will bring the spindle bearings to about 155°F (68°C).

Check mark

This is a normal condition. Spindle bearing preload is set at the factory and is not operator-adjustable IMPORTANT! Do not attempt to adjust spindle bearing preload on PCNC 770 spindles. Failure to do so will adversely impact spindle balance.;

Run this procedureArrow right

Flood Coolant System Maintenance

Check mark

Regular maintenance of the flood coolant system will prolong the service life of the coolant pump.

Check mark

• Collect tramp oil with an absorbent pillow or a mechanical oil skimmer. Replace pillows as needed.

Check mark

• Coolant can scum if allowed to sit for a prolonged period. Replace coolant as needed.

Check mark

• Check the impeller for obstructions.

Check mark

• Clean coolant reservoir regularly.

Check mark

NOTE: Check with local authorities on proper handling and disposal of new and used coolant.;

Run this procedureArrow right

Parts for Tormach CNC Milling Machine PCNC1100

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Buck-Boost Transformer

32554

Step-Up/Step-Down Transformer

32009

Quick 220™ Voltage Converter Power Supply

33972

Lifting Bar Kit

31446

Moving Kit

31333

Buck-Boost Transformer

32554

Step-Up/Step-Down Transformer

32009

Quick 220™ Voltage Converter Power Supply

33972

Lifting Bar Kit

31446

Moving Kit

31333

Buck-Boost Transformer

32554

Step-Up/Step-Down Transformer

32009

Quick 220™ Voltage Converter Power Supply

33972

Lifting Bar Kit

31446

Moving Kit

31333
