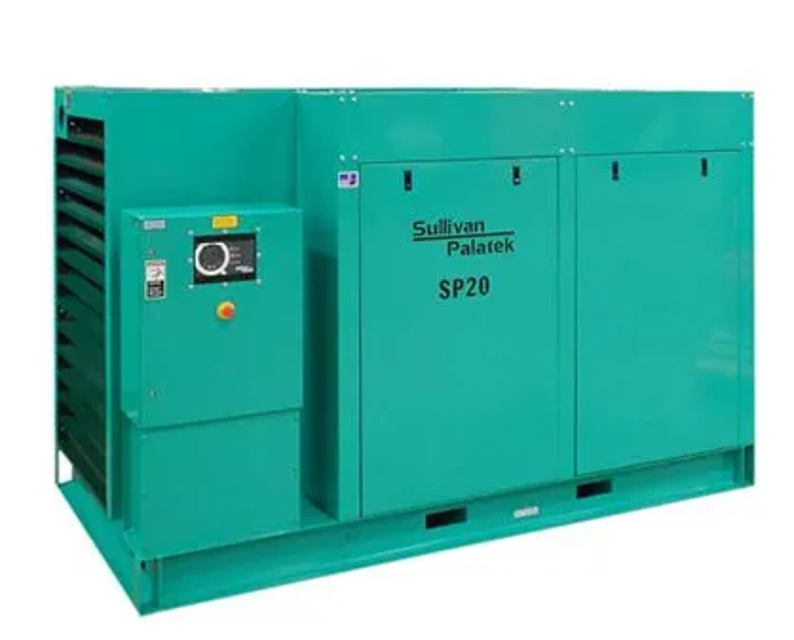

Sullivan-Palatek Industrial Air Compressor SP20-350

Warning: Follow OSHA regulation 1910.147: The Control of Hazardous Energy Source (Lockout/Tagout)

Disconnect and lockout the main power source. Display a sign in clear view at the main power switch stating that the compressor is being serviced.

Isolate the compressor from the compressed air supply by closing a manual shutoff valve downstream from the compressor. Display a sign in clear view at the shutoff valve that the compressor is being serviced. Be certain that a pressure relief valve is installed upstream of any isolation valve.

Wait until sump pressure reading is 0 psig.

Open all manual drain valves within the area to be serviced.

Wait for the unit to cool before starting to service. Temperatures of 125°F (52°C) can burn skin. Some surface temperatures exceed 250°F (121°C) when the compressor is operating and just after it is shut down.

Follow 6.3 Stopping for Maintenance procedures (optional).

If the compressor is equipped with the optional canopy, remove the front left access door panel. The pressure control regulating valve is located behind this enclosure panel, to the right of the electrical control panel.

Tighten the adjusting screw on the pressure control regulating valve about one turn to remove the modulating control while adjusting the load and unload settings on the CPS.

Warning: Follow OSHA regulation 1910.147: The Control of Hazardous Energy Source (Lockout/Tagout)

Disconnect and lockout the main power source. Display a sign in clear view at the main power switch stating that the compressor is being serviced.

Isolate the compressor from the compressed air supply by closing a manual shutoff valve downstream from the compressor. Display a sign in clear view at the shutoff valve that the compressor is being serviced.

Wait until sump pressure reading is 0 psig.

Open all manual drain valves within the area to be serviced.

Wait for the unit to cool before starting to service.

Follow 6.3 Stopping for Maintenance procedures.

Remove the scavenger line between the tank lid and the top of the sight glass which is held in by tube fittings.

Disconnect tube lines connected to the lid or MPV. Mark the ends for proper reinstallation.

Main power source disconnected and locked out?

Compressor isolated from the compressed air supply?

Sump pressure reading is 0 psig?

All manual drain valves within the area to be serviced are open?

Unit cooled before starting to service?

Followed 6.3 Stopping for Maintenance procedures?

Unfastened the clamps on the rear housing and removed?

CAUTION!: Do not overfill. System could produce excess fluid in compressed air lines and controls.

Compressor filled with correct amount of fluid before shipping

Sightglass solid (all fluid) while compressor is off

If fluid level is low or empty, check for leaks before doing anything else.

Fill cap replaced and tightened to SAE specification

Sign off on the initial fluid level check

Inspect solenoid valve, correct as needed

Tighten electrical connections, correct as needed

Verify gauge accuracy, correct as needed
