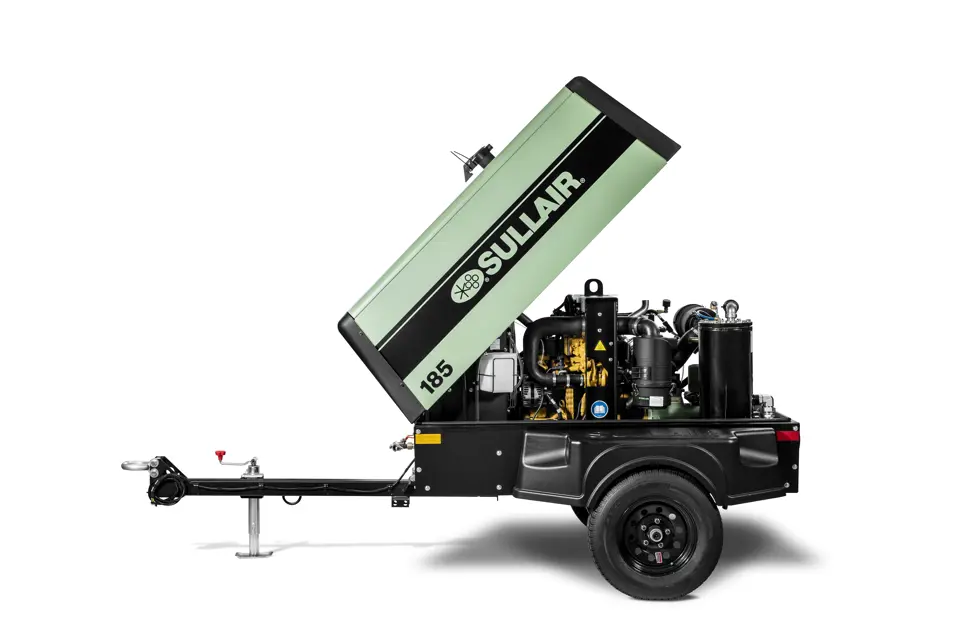

Sullair Portable Air Compressor 185E DPQ KU T3

Warning: Ensure the compressor is turned off and cooled down before starting the procedure

Loosen and remove the air filter and cover

Remove the primary and optional secondary elements

Clean the body, inside and out, with a damp cloth

Reinstall (if clean) or replace the secondary element if installed

Replace the new primary filter element

Reposition the cover and lock it into the position

Reset the filter restriction indicator (if equipped)

Sign off on the air filter replacement

Remove the old element with a strap wrench

Clean the gasket seating surface

Apply a light coating of fluid to the new gasket

Hand tighten the new element until the new gasket is seated

Continue tightening the element by hand an additional 1⁄2 to 3⁄4 turn

Restart the compressor and check for leaks

Sign off on the fluid replacement

Warning: This procedure requires trained personnel with PPE!

Compressor fluid carryover evident?

If compressor fluid carryover is evident, proceed with the following steps. If not, report the issue to the maintenance team.

Enter the part number of the new separator element

Old element removed with a strap wrench?

Gasket seating surface cleaned?

Light coating of fluid applied to the new gasket?

New element hand tightened until the new gasket is seated?

Element tightened by hand an additional 1⁄2 to 3⁄4 turn?

Warning: Proper lubrication of the portable compressor's bearing axle is critical to its proper function and reduction of wear on this part.

Use a wheel bearing grease that conforms to MILSPEC MIL-G-10924 or a high temperature one such as lithium complex NLGI consistency #2

Axles with the E-Z Lube feature can be periodically lubricated without removing the hubs from the axle.

Remove the rubber cap from the grease cap's end

Using a full charged grease gun, place the gun onto the grease zerk located on the end of the spindle. Make sure the nozzle is fully engaged on the fitting

Pump grease into the zerk. The old grease will be displaced and flow out of the cap around the grease gun nozzle

When the new grease starts flowing out of the cap, disengage the gun and wipe off any excess off the cap; and replace the rubber plug

Sign off on the compressor bearing lubrication

Check the fuel filter for water

Drain water from the fuel/water separator

Place a container for collecting the fluid under the drain

Open the drain valve by turning it two turns to the left. Any water in the separator bowl will flow out through the drain

When the fluid flowing from the drain changes from water to fuel, close the drain valve by turning the valve to the right until tight

Replace the fuel filter of the fuel/water separator
