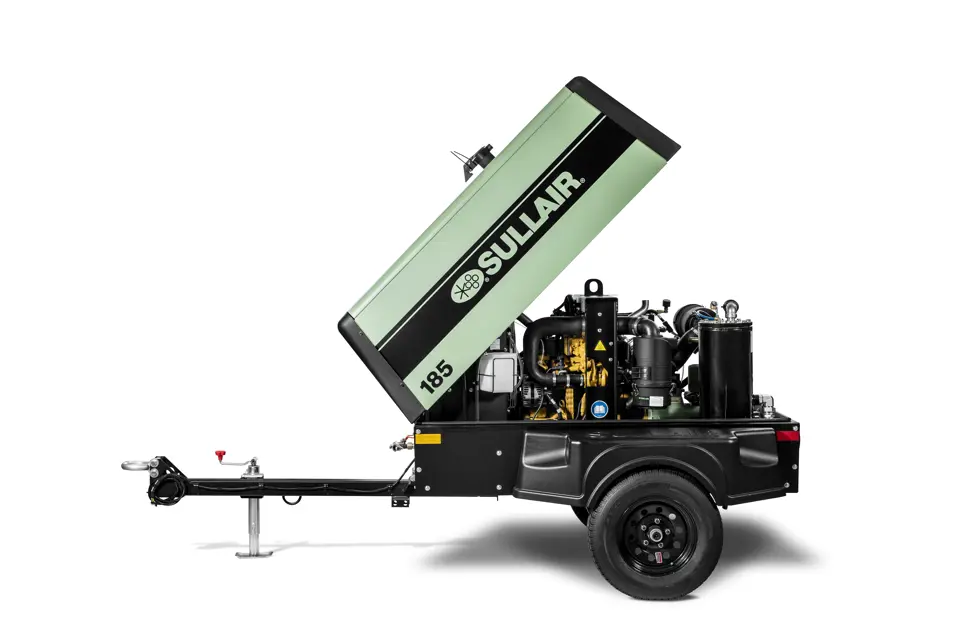

Sullair Portable Air Compressor 185DPQ CC 100-3185

Need answers fast?
Explore the manual using AI.

Sullair Portable Air Compressor 185DPQ CC 100-3185
Sullair Portable Air Compressor 185DPQ CC 100-3185

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Sullair Portable Air Compressor 185DPQ CC 100-3185

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Sullair Portable Air Compressor 185DPQ CC 100-3185

Sullair Portable Air Compressor 185DPQ CC 100-3185

Create an account to install this asset package.

Maintenance Plans for Sullair Portable Air Compressor Model 185DPQ CC 100-3185

Integrate maintenance plans directly into your work orders in MaintainX.

50 Hour Compressor Air Filter Replacement

Check mark

Loosen and remove the air filter and cover

Check mark

Remove the primary and optional secondary elements

Check mark

Clean the body, inside and out, with a damp cloth

Check mark

Reinstall (if clean) or replace the secondary element if installed

Check mark

Replace the new primary filter element

Check mark

Reposition the cover and lock it into the position

Check mark

Reset the filter restriction indicator (if equipped)

Check mark

Sign off on the air filter replacement

Run this procedureArrow right

50 Hour Compressor Air Filter Inspection

Check mark

Inspect air filter element for any light leaks indicating damage

Check mark

Inspect all gaskets and gasket contact surfaces of the housing for any damage

Check mark

Store clean elements for later use in a clean container

Check mark

After installing the element, inspect and tighten all air inlet connections before operating the compressor

Run this procedureArrow right

250 Hour Compressor Maintenance

Check mark

CAUTION: Operating the compressor below its minimum specified idle speed will damage the compressor. Operating the compressor in this condition will cause coupling and/or compressor failure

Check mark

Clean the radiator and cooler exterior surfaces every 100 hours

Check mark

Check the Engine Operator’s Manual for service requirements every 100 hours

Check mark

Check fan belt tension

Check mark

Clean the radiator and cooler exterior surfaces

Check mark

Check the Engine Operator's Manual for service requirements

Check mark

Change the engine oil and filter

Check mark

Clean or replace the return line strainer

Check mark

Change the air filter primary elements

Run this procedureArrow right

1 Daily Compressor Maintenance

Check mark

Check daily compressor prior to operation

Check mark

WARNING: Do not use aerosol types of starting aids such as ether. Such use could result in an explosion and personal injury

Check mark

Ensure that the compressor is on a level surface

Check mark

Ensure that a minimum clearance of 3 feet [0.9 meters] is provided all the way around the machine to allow exhaust gas to ventilate before operating the machine

Check mark

Check all oil and fluid levels in the engine and compressor. Add oil and/or fluid if necessary

Check mark

Fill the fuel tank and drain any water from the fuel/ water separator

Check mark

Check the dust collectors and clean if necessary

Check mark

Crack open one service line

Check mark

When the compressor is warmed up, press the "Start/Load" button to load the compressor for full operation

Run this procedureArrow right

Initial 50 Hours Compressor Maintenance

Check mark

Clean the return line orifice and check the strainer

Check mark

Change the compressor fluid filter

Check mark

Check the Engine Operator’s Manual for service requirements

Check mark

Check the fuel filter for water

Check mark

Confirm that the receiver tank cover bolts are tightened to 60 lbf ft (81 N m)

Check mark

Sign off on the compressor maintenance

Run this procedureArrow right

Parts for Sullair Portable Air Compressor 185DPQ CC 100-3185

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

All Weather Fluid

250030-757

All Weather Fluid

250030-758

Separator Element

88291009-563

All Weather Fluid

250030-757

All Weather Fluid

250030-758

Separator Element

88291009-563

All Weather Fluid

250030-757

All Weather Fluid

250030-758

Separator Element

88291009-563
