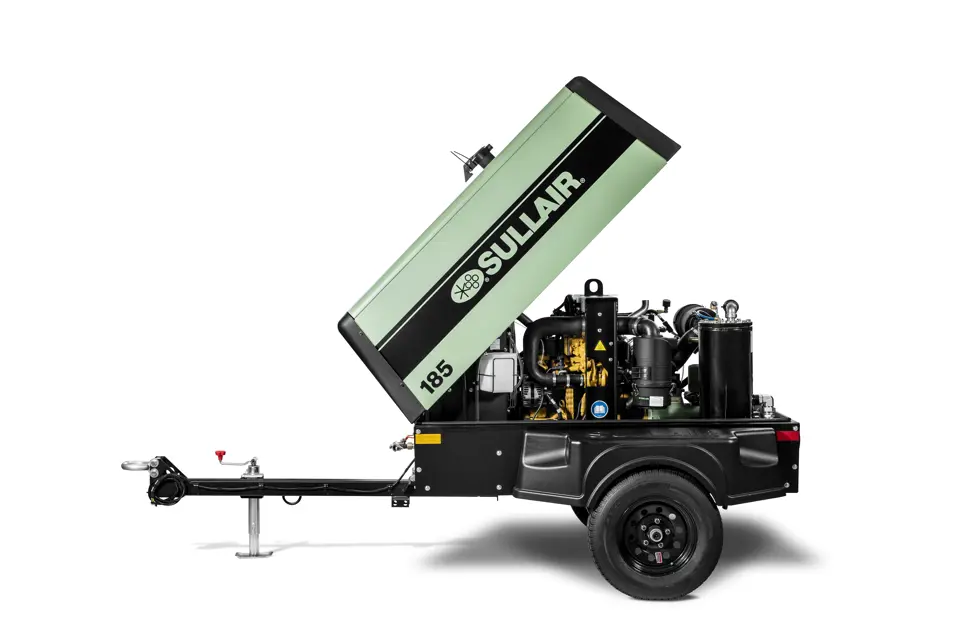

Sullair Portable Air Compressor 185 DPQCA3

Check daily compressor prior to operation

WARNING: Do not use aerosol types of starting aids such as ether. Such use could result in an explosion and personal injury

Ensure that the compressor is on a level surface

Ensure that a minimum clearance of 3 feet [0.9 meters] is provided all the way around the machine to allow exhaust gas to ventilate before operating the machine

Check all oil and fluid levels in the engine and compressor

Fill the fuel tank and drain any water from the fuel/water separator

Check the dust collectors and clean if necessary

When the compressor is warmed up, press the "Start/Load" button to load the compressor for full operation

Insert a bright light source into the element and look for any light leaks which indicate the presence of damage (holes, cracks, etc.)

Inspect all gaskets and gasket contact surfaces of the housing and replace any damaged ones

Store clean elements for later use in a clean container

After installing the element, inspect and tighten all air inlet connections before operating the compressor

Sign off on the air filter inspection

Warning: This procedure requires trained personnel with PPE!

Compressor fluid carryover evident?

Enter the part number of the new separator element

Old element removed with a strap wrench?

Gasket seating surface cleaned?

Light coating of fluid applied to the new gasket?

New element hand tightened until the new gasket is seated?

Element tightened by hand an additional 1⁄2 to 3⁄4 turn?

Compressor restarted and checked for leaks?

Loosen and remove the air filter and cover

Remove the primary and optional secondary elements

Clean the body, inside and out, with a damp cloth

Reinstall (if clean) or replace the secondary element if installed

Replace the new primary filter element

Reposition the cover and lock it into the position

Reset the filter restriction indicator (if equipped)

Sign off on the air filter replacement

Warning: Ensure the compressor is off and all internal pressure is relieved before starting the procedure

Compressor run for five to ten minutes to warm the fluid

Compressor shut down and all internal pressure relieved

Fluid sump drained by removing the plug or opening the valve at the bottom of the sump tank

Compressor fluid changed and fluid filter element replaced

Amount of fluid filled in the sump

Sign off on the compressor fluid filter element replacement
