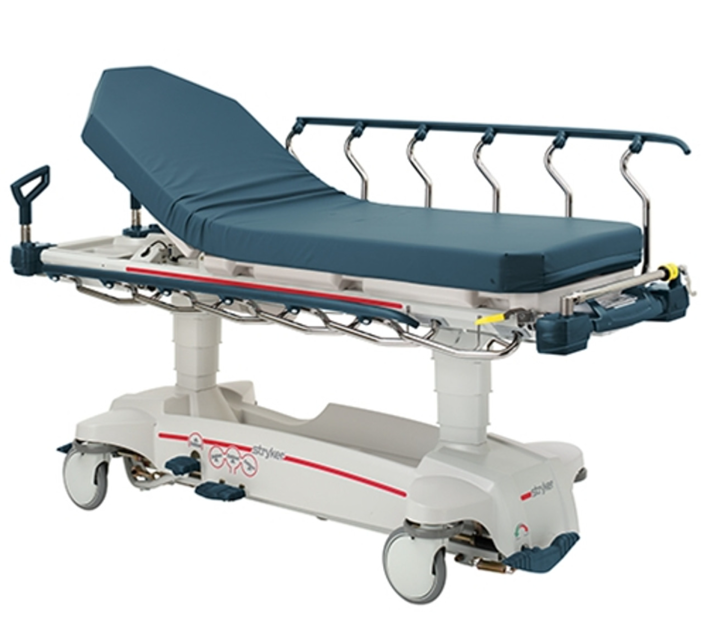

Stryker Stretcher 1005

Pump the litter up to full height

Lift the base hood and support it from the litter using string or bungee cords

Remove the rue ring cotter and clevis pin connecting the rod end link to the side control link

Remove the four bolts holding the brake rod assembly to the base frame and remove the entire assembly

Using a hammer and 7/32” punch, drive the slotted spring pin out of the butterfly “V” pedal on the patient’s left side and remove the pedal

Using a hammer and 7/32” punch, drive the slotted spring pin out of the hard stop in the center of the support weldment

Using a hammer and 7/32” punch, drive out the slotted spring pin connecting the side control link to the side control brake rod on the patient’s right side

Pull on the butterfly “V” pedal on the patient’s right side to remove the side control brake rod from the base

Reverse steps 1−8 to reinstall the brake rod. When reinstalling the assembly, torque the hex head cap screws to 12−15 ft.−lbs

Step 1: Remove the caster cover

Caster cover removed successfully

Step 2: Remove the nylock hex nut

Nylock hex nut removed successfully

Step 3: Remove the caster assembly

Caster assembly removed successfully

New caster installed successfully

Warning: This procedure requires trained personnel with PPE!

Using needle nose pliers, remove the rue clip and clevis pin connecting the Gatch pump ram to the pump handle.

Using a 3/8” drive ratchet and a 1/2” socket, remove the three hex head bolts holding the Gatch valve body to the Gatch weldment and the lock nut holding the release link. Carefully lower the valve body out of the weldment.

Using needle nose pliers, remove the two rue clips and two clevis pins connecting the hydraulic cylinder to the seat section and the thigh section. Remove the valve body assembly.

Reverse to install the new Gatch valve body assembly.

Sign off on the Gatch Valve Body Replacement

Pump the litter up to full height

Remove the screws holding the litter foot end cover and the foot end corner covers using a T27 Torx

Cut all cable ties and disconnect the cables from the load cells using wire cutters

Remove the six bolts holding the litter foot end weldment using a 1/2” socket. Save the bolts for reuse

Drill out the rivets holding the scale display box to the foot end weldment

Plug the load cell cables into the display cables to verify the system is working, then unplug the cables

Attach the new scale display box to the foot end weldment using two rivets

Reattach the foot end weldment to the siderail tubes using the six bolts removed in step 3

Reinstall the corner covers and the foot end cover

Warning: Always use gloves and eye protection when handling Sodium Thiosulfate

Enter the amount of Sodium Thiosulfate used

Was the stain removed after the first application?

If the stain was not removed, repeat the process

Was the surface rinsed in clear water?

Sign off on the cleaning process
