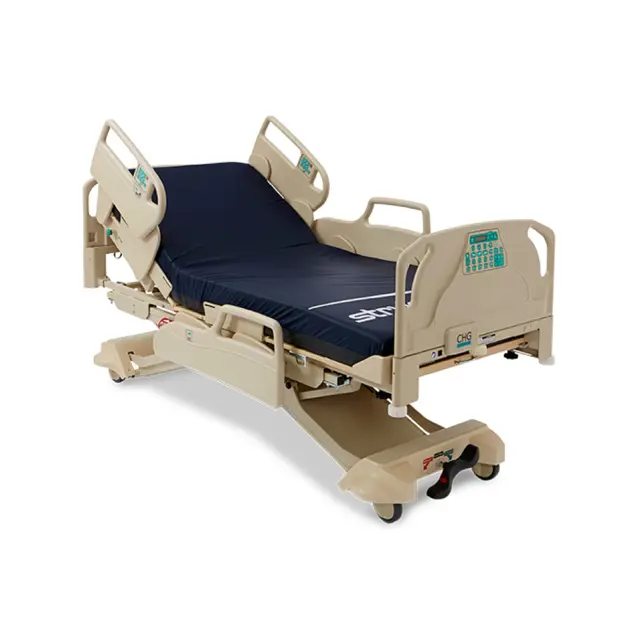

Stryker Hospital Bed 5700

Inspect the bed for broken, bent, or damaged components

Inspect for damaged or loose wiring

Inspect the control boxes to ensure that the enclosures are not cracked or damaged

Inspect actuator guard bracket for any signs of deformation, excessive wear or damage

Inspect actuators to ensure enclosures are not cracked or damaged

Inspect the head-end and foot-end leg assemblies for any bend or damage

Inspect the footboard staff control, side rail controls, and pendant to ensure that the overlays covering these controls are not cracked or damaged

Inspect all grounding wires and equipotential conductor

Tighten, adjust and/or replace any parts or screws, bolts, clevis/hitch/cotter pins, etc. that are loose or show signs of wear

Contact at any point on each of the six obstruction sensor pads stops all downward bed motion

Bed automatically elevates the 1” safety distance

Audible and visual warnings are present

Select any obstruction sensor pad that fails to operate correctly or consistently

Sign off on the obstruction sensor inspection

Bed is plugged into an AC power outlet

Battery is connected to the CB10/CB11 control box

The power status indicator has ONLY a solid Green AC light

If other lights are on/flashing, refer to page 63 for instructions and take appropriate action before continuing with inspection

Unplug the bed from the AC power outlet and perform all bed functions, including emergency functions, to test bed operation under battery power

Battery is holding a proper charge sufficient to deliver emergency functions when needed

Replace battery if performance is inadequate

Perform all bed functions from footboard staff control

Perform all bed functions from patient/staff siderail controls

Warning: This calibration procedure requires trained personnel with PPE!

Bed angle calibration successful?

If bed angle calibration is not successful, report the issues to the maintenance team and stop the procedure

Bed raised to comfortable working height?

Calibration units and weight amount set correctly?

Calibration weight correctly set and exact total sum of calibration mass used?

Note: A scale is most accurate and delivers superior repeatability when it has been calibrated within the range that the scale is expected to typically operate.

Calibration masses placed correctly at patient left, head end of the bed?

Calibration masses placed correctly at patient left, foot end of the bed?

Warning: Always follow industry best practices for all cleaning and/or disinfection operations.

The SpiritTM bed is not rated for spray and/or pressure washing or steam cleaning/sterilization.

Check if the bed is SpiritTM model

If the bed is not SpiritTM model, stop the procedure and report to the supervisor

Cleaning: All SpiritTM bed surfaces cleaned with soapy water and/or other non-abrasive cleaners

Disinfection: All SpiritTM bed surfaces disinfected with ethanol or isopropyl alcohol, and/or Mikro QuatTM (or equivalent cleaning solution)

Enter the Sodium Hypochlorite Concentration used for disinfection

Disinfected surfaces rinsed with potable (tap) water and wiped dry

Sign off on the bed cleaning and disinfection
