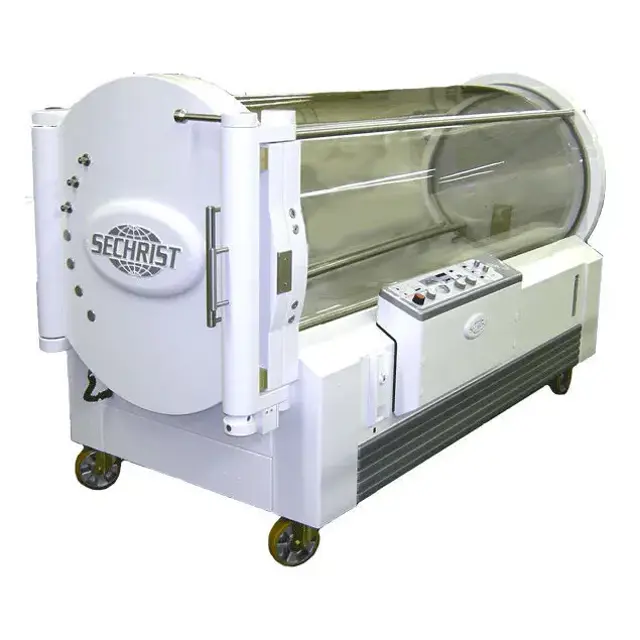

Sechrist Industries Monoplace Hyperbaric Chamber 3600ER

Disinfect the Chamber according to the type of cases being treated and as directed by the medical staff.

Wash the Chamber and all surfaces with an approved disinfectant or mild dish washing soap

Ensure only Sechrist Industries qualified disinfectants are used for the acrylic Viewport window

Compression Purge Flow Rate Check

Record the current purge flow rate from the Purge Rate Flowmeter

Is the purge flow rate between 300 - 400 lpm?

Adjust the Compression Purge Flow Rate control handle if necessary

Verify the setting during the first 10 minutes of a compression cycle

Record the current purge flow rate from the Purge Rate Flowmeter

Is the purge flow rate between 80 - 400 lpm?

Adjust the Plateau Purge Flow Rate control handle if necessary

Connect the DC power supply and the auxiliary source to the Chamber.

Power Supply and Control Panel Check

Check the Power Supply and connections

Is the DC Power Indicator illuminated?

Is the Low Battery Indicator not illuminated?

Control Panel Speaker and Volume Check

Turn the Master Control Knob to the On position.

Turn the Master Control Knob to the On position

Adjust the Compression Purge Flow Rate to 300 lpm

Adjust the Rate Set display to 1 psig/min

Adjust the Pressure Set digital display to 30.0 psig (3.04 ATA, 0.207 MPa, 206.9 kPa) by turning the Pressure Set Knob clockwise

Record the amount of time required for the pressure to increase from 5.0 to 6.0 psig

Record the amount of time required for the pressure to increase from 14.0 to 15.0 psig

Record the amount of time required for the pressure to increase from 25.0 to 26.0 psig

Is the time period for pressure increase 60 seconds (± 10 seconds)?

Contact SECHRIST INDUSTRIES if the rate of compression does not meet the required specifications

Ensure maintenance is performed within 9 to 15 months of service

Verify that all maintenance tools and materials are prepared

Inspect gas supply for contamination

Is the gas supply free from hydrocarbons?

Check that all filters and mechanisms are clean

Clean filters and mechanisms if necessary
