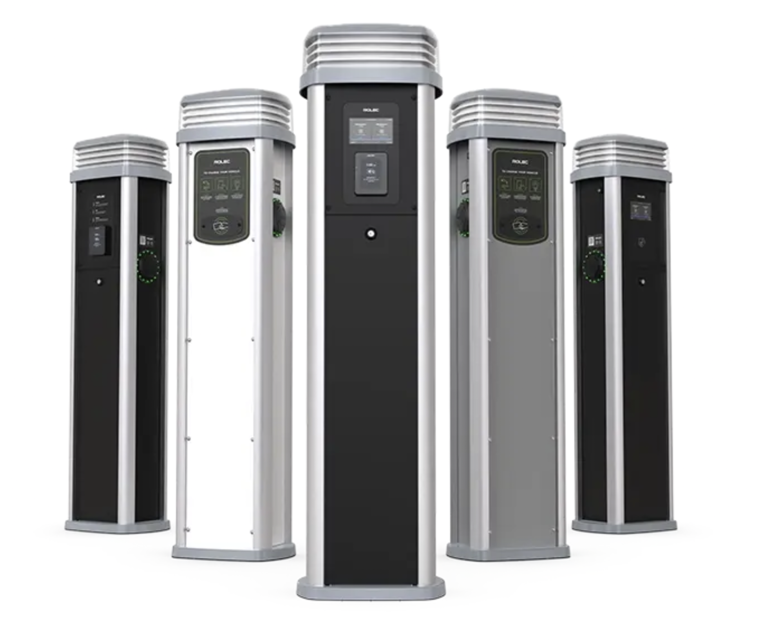

Rolec Services EV Charger ROLFC2411B

Ensure electrical power to the Chargepoint is OFF

Remove and retain the fixings securing the front fascia panel

Carefully ease the panel away from the unit

Locate and remove 2x 5mm hex bolts and washers

Carefully lift the clear dome from the pedestal

Clean the external surfaces with a damp cloth

Is the working environment requiring more frequent cleaning?

Ensure the following are NOT used during cleaning

Check for physical damage and presence of warning labels

Status indicators operating and displaying correct status

Check the condition of the charging socket and accessories

Ensure the access/cable lock is operational

Check for physical damage internally

Visual inspection for any heat degradation

Ensure no foreign bodies or other contamination present

Ensure wires and terminals are secure

Enter earth fault loop impedance value

Test power outlets using a load simulator

If Chargepoint illumination is installed, does the illumination and light sensor operate correctly?

Ensure the inspection area is clear and safe for work

Is the electrician appropriately qualified?

Electrical Inspection and Testing

Inspect the Chargepoint for any visible damage

Record the voltage reading of the Chargepoint

Record the current reading of the Chargepoint

Test the switchgear functionality
