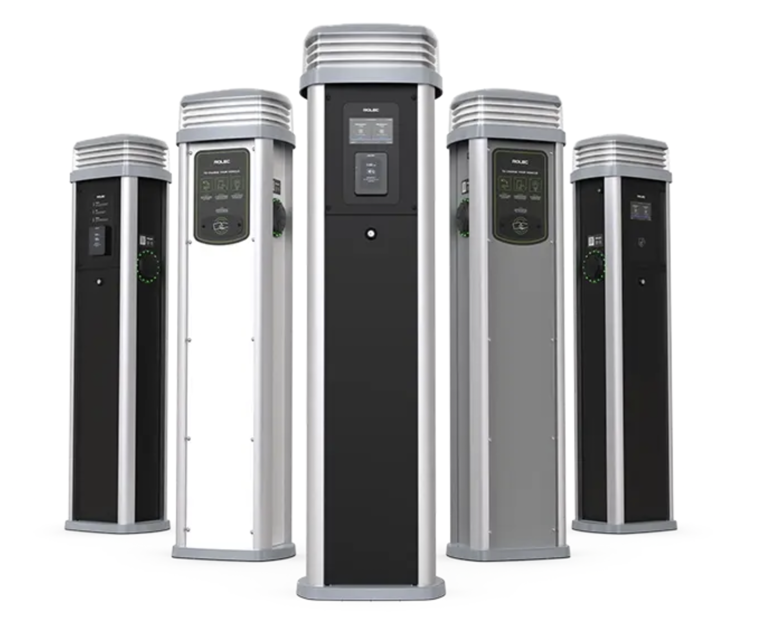

Rolec Services EV Charger ROLFC0423G

Check for physical damage and presence of warning labels

Status indicators operating and displaying correct status

Check the condition of the charging socket, contacts, and socket flap (if installed)

Ensure the access/cable lock is operational (if installed)

Check for physical damage inside the enclosure

Visual inspection for any heat degradation

Ensure no foreign bodies or other contamination are present

Ensure the Chargepoint is powered down

Verify that the inspection tools are calibrated and ready for use

Electrical Inspection and Testing

Inspect the Chargepoint for any visible damage

Measure the voltage at the Chargepoint

Measure the current draw of the Chargepoint

Is the insulation resistance within acceptable limits?

Ensure electrical power to the Chargepoint is OFF

Gather necessary hand tools for the procedure

Remove and retain the fixings securing the front fascia panel

Carefully ease the panel away from the unit

Ensure all electrical connections are secure before refitting the panel

Locate and remove 2x 5mm hex bolts and washers

Clean the external surfaces with a damp cloth

Note any additional cleaning frequency based on the working environment

Ensure the following materials and methods are NOT used

Ensure wires and terminals are secure

Enter earth fault loop impedance value

Test power outlets using a load simulator

If Chargepoint illumination is installed, does the illumination and light sensor operate correctly?
