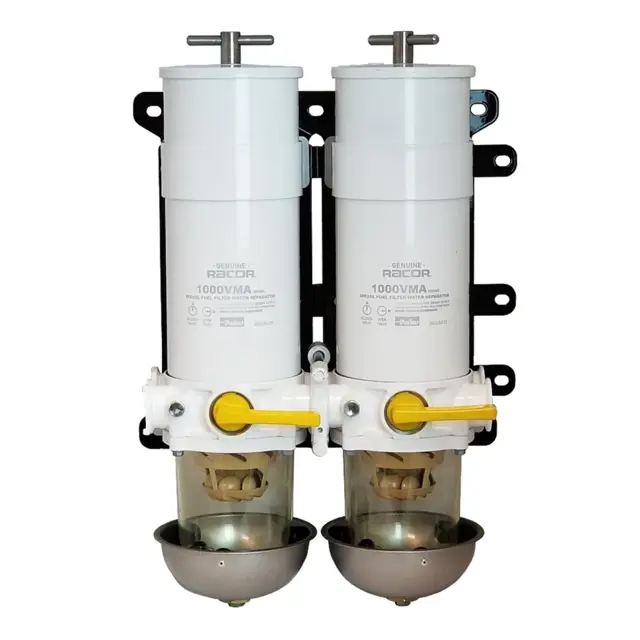

Parker Hannifin Fuel Filter/Water Separator 751000MAX

Warning: This procedure requires trained personnel with PPE!

Inspect collection bowls of water daily

Is the Water Detection Module indicating a drain is required?

Close inlet valve (or valve #1) and open drain plug on bottom of bowl

Close drain plug after all water and contaminants have been evacuated

Remove T-handle and lid from top of all filter assemblies

Warning: Always carry extra replacement filters as one tankful of excessively dirty fuel can plug a filter.

Use only genuine Racor Aquabloc® replacement filters.

Bypass filter assembly with bypass valves, if applicable.

Upload a photo of the removed T-handle and lid.

Remove filters by holding bail handles and slowly pulling upward with a twisting motion.

Upload a photo of the properly disposed old filters.

Replace old lid gasket and T-handle O-ring with new seals (supplied with new filter).

Lubricate both seals with motor oil or diesel fuel before installation.

Refer to Priming Instructions, otherwise, fill unit with clean fuel, replace lid and T-handle and tighten snuggly by hand only – do not use tools.
