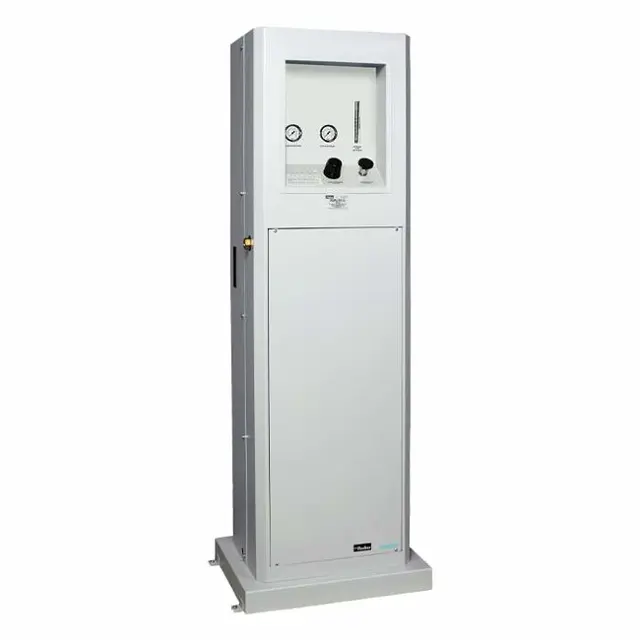

Parker Hannifin Nitrogen Generator N2-160

Warning: Depressurize generator prior to changing filter cartridges.

Front filtration access panel opened

Replaced Balston 2104N-1B1-DX and 2104N-1B1-BX filter assemblies with Balston 100-18-DXE and 100-18-BXE filter cartridges

Proper grade filter installed in the proper housing

Replaced Balston CO2-2265 filter assembly with a Balston 100-25-BXE filter cartridge

Replaced Balston 2104N-OAO-95 filter assembly with a Balston Grade GS 100-25-95 membrane filter cartridge

Filter cartridges removed by loosening the bowl from the head of the filter assembly

Warning: Nitrogen Generator is not intended for use in extremely dirty environments.

Is the environment clean enough for the Nitrogen Generator?

The Nitrogen Generators may be wiped clean with a dry cloth on an as needed basis.

Did you wipe the Nitrogen Generator with a dry cloth?

Do not use water, aerosols, or other cleaning agents to clean the unit. Use of any liquid detergent to clean the generator could present an electrical hazard.

Did you avoid using water, aerosols, or other cleaning agents to clean the unit?

Sign off on the Nitrogen Generator cleaning

Warning: Failure to replace the carbon filter every six months could cause premature failure of the membrane and will void the warranty.

The carbon filter is located behind the filtration access panel.

Contact the local Parker representative for ordering information and pricing for a replacement carbon filter.

Spent carbon towers may be disposed of locally by the user. If there are disposal concerns, please contact the Technical Services Department at 800-343-4048, 8AM-5PM Eastern Time.

The only tool required to change the carbon filter is a 7/8\ open end wrench."

Turn off the air supply to the generator and allow the system to depressurize.

Disconnect the upper hose from the filter using the 7/8\ open end wrench."

Remove the two lockdown knobs to release the filter.

Disconnect the lower hose (exposed by removing the lockdown knobs) using the open end wrench and remove the filter from the generator.
