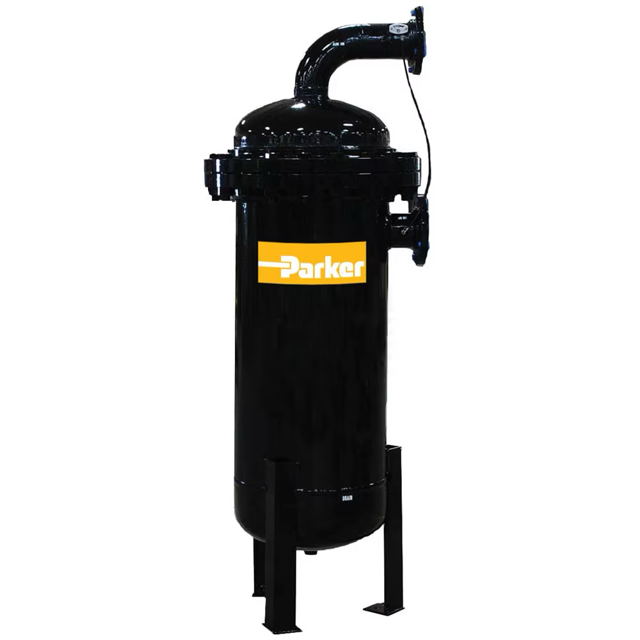

Parker Hannifin Eliminator XL1000
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Parker Hannifin Eliminator XL1000
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Parker Hannifin Eliminator XL1000
Create an account to install this asset package.
Maintenance Plans for Parker Hannifin Eliminator Model XL1000
Integrate maintenance plans directly into your work orders in MaintainX.
Automatic Drain Replacement
Isolate air (gas) supply by closing valve
Depressurize drain by opening vent valve
Drain can now be removed
Dismantle drain by removing clamp ring - this is achieved by pressing tab on ring while turning
When replacing drain DO NOT pressurize unit unless drain is properly fitted
Sign off on the drain replacement
5 Years Filter Element Replacement
Filter element needs replacement (5 years or gauge needle indicates ‘RED’)?
Isolate air (gas) supply and depressurize filter housing by opening valve.
Nuts and bolts from the body flange removed?
Top flange with element attached raised?
Nuts on the underside to the element support plate unscrewed?
Element support plate, complete with element, removed?
Inside of housing cleaned and inspected for any signs of corrosion?
Light coating of paraffin grease applied to replacement gasket and positioned?
Element and support plate replaced?
Parts for Parker Hannifin Eliminator XL1000
Access the parts list for your equipment in MaintainX.
Filter Element
K1000MXL
Filter Element
K1000MXL
Filter Element
K1000MXL
