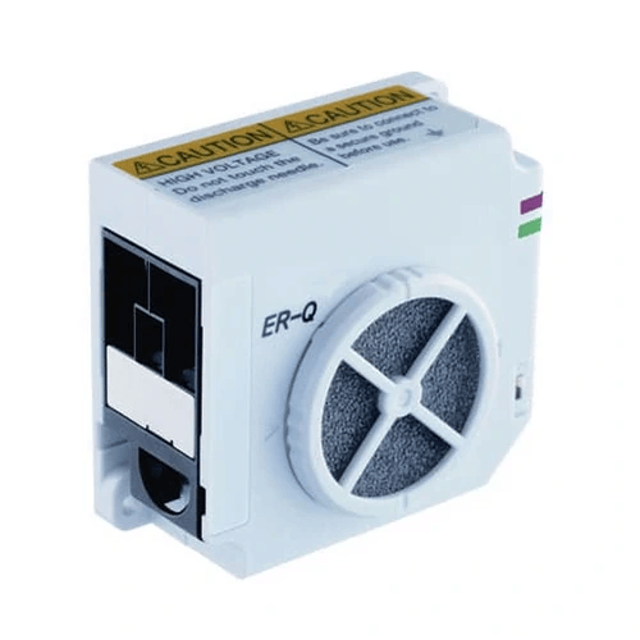

Panasonic Static Remover Ultracompact Fan Ionizer ER-Q

1 Follow the procedure given below to remove the discharge needle unit from the main unit.

2 Use a cotton swab or similar moistened in alcohol to clean the discharge needles and the areas around them.

If the needles are particularly dirty, use a brush (such as a toothbrush) moistened with alcohol to rub them clean, and then use a cotton swab to wipe them.

A commercially-available ultrasonic cleaner can also be used for cleaning. (Immerse the discharge needle unit into the cleaning tank to clean them.)

3 Insert the tabs of the discharge needle unit into the two slots in the main unit, slide the discharge needle unit sideways to install it to the main unit until a click is heard.;

Install and use a filter depending on the operating environment.

1 Turn the filter cover in the direction shown in the illustration to align the * marks.

2 Remove the filter cover and the filter from the ER-Q main unit.

3 Remove the filter from the filter cover, and remove any dust and dirt adhering to the filter. If the filter is extremely dirty, wash it in water. If washing the filter in water, let it dry thoroughly before using it again.

4 Install the filter and the filter cover to the ER-Q main unit.

* If the filter is used while it is still wet, accidents or problems with operation may occur.

* If the filter cannot be cleaned, replace it.

* Be careful not to let any foreign objects get inside the main unit when removing and installing the filter.;
