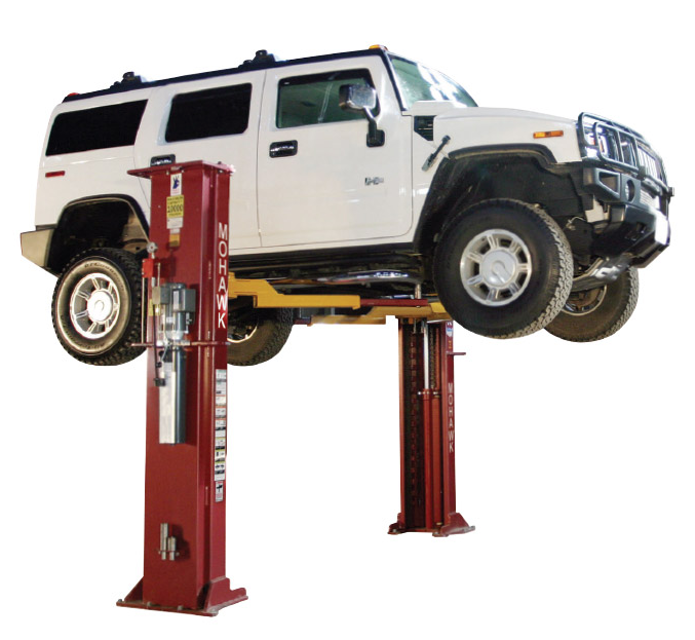

Mohawk Lifts Post Truck Lift TP-30-WB

Pre-operation check list performed

Report any and all equipment malfunctions

Light lubricant used if oxidization is occurring

Area around equipment free of dirt, sand, water, etc.

Sign off on the daily post truck lift maintenance

Raise the unit approximately 3 feet

Disengage the main side mechanical safety

Lower the unit onto the off side mechanical safety

While continuing to hold down the power unit lowering handle, observe the main side carriage for movement. The unit has checked out OK if there is no movement (main side carriage does not continue to lower)

Sign off on the off side safety check

Perform the daily operation check list

Perform the hydraulic safety checks

Wipe clean, the cylinders' wiper seals and the base of each post to remove any weeping oil and dust

Verify fluid level. With the unit fully lowered, the fluid level will be 1/2 inch below the breather cap port. Use Dexron III as replacement fluid

Lubricate the arm restraint assemblies as needed to insure free, and smooth operation. (Do not use grease)

Cycle unit to full height, and bleed approximately 30 seconds

Check lubricator fluid level. Fill if needed

Drain filter regulator of excessive moisture

Sign off on the weekly post truck lift maintenance

Raise the unit approximately 3 feet

Disengage the off side mechanical safety

Lower the unit onto the main side mechanical safety

While continuing to hold down the power unit lowering handle, observe the off side carriage for movement.

The unit has checked out OK if there is no movement (off side carriage does not continue to lower)

Sign off on the main side safety check

Check your hydraulic fluid annually

Inspect all bearings for unusual or excessive wear

Remove the swing arm restraints

Perform the daily, weekly, and monthly maintenance procedures

Sign off on the 1 Yearly Post Truck Lift Maintenance
