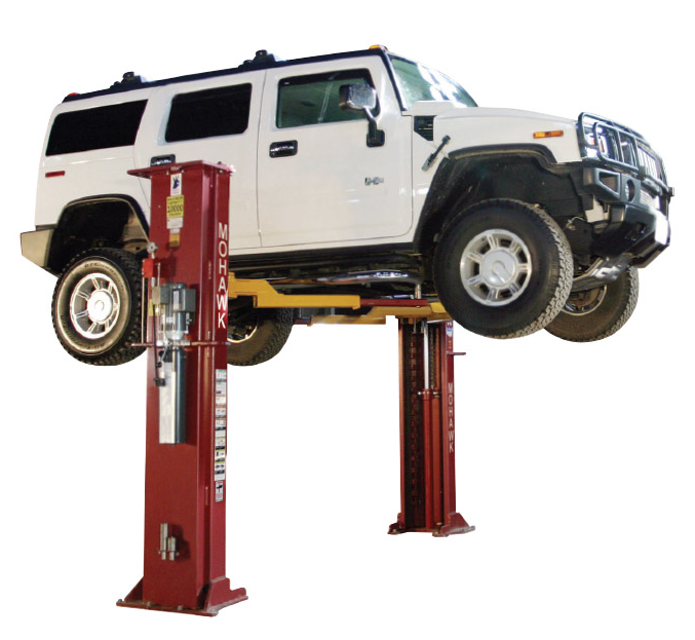

Mohawk Lifts Post Truck Lift TP-26-WB

Perform the daily operation check list

Perform the hydraulic safety checks

Wipe clean, the cylinders' wiper seals and the base of each post to remove any weeping oil and dust

Verify fluid level. With the unit fully lowered, the fluid level will be 1/2 inch below the breather cap port

Lubricate the arm restraint assemblies as needed to insure free, and smooth operation. (Do not use grease)

Cycle unit to full height, and bleed approximately 30 seconds

Check lubricator fluid level. Fill if needed

Drain filter regulator of excessive moisture

Sign off on the weekly post truck lift maintenance

Pre-operation check list performed

Report any and all equipment malfunctions

If oxidization is occurring, use a light lubricant (WD-40 or equivalent)

Area around this equipment free of dirt, sand, water, etc.

Sign off on the daily post truck lift maintenance

Warning: Only trained operators are allowed to perform this check

Operator is fully trained and qualified to operate this equipment of this specific make and model

The total work area is free of any and all obstructions and is generally clean (free of oil and debris)

Thorough visual inspection of the unit, floor and the anchoring fasteners has been conducted

All lifting pads and height adapters have been inspected for any wear, rust, debris, or deformities

Sufficient air is available to the lift to operate the pneumatic lock system

All mechanical safeties operate properly and consistently

Raise the unit approximately 3 feet

Disengage the off side mechanical safety

Lower the unit onto the main side mechanical safety

While continuing to hold down the power unit lowering handle, observe the off side carriage for movement. The unit has checked out OK if there is no movement (off side carriage does not continue to lower)

Inspect all hydraulic components for leaks, deformation, wear or corrosion

Tighten all fasteners, hydraulic / pneumatic fittings as required

All O - Ring boss fittings jam nuts are to be tightened to 15 foot pounds torque

All pipe fittings, if leaking are to be removed, re-sealed, and re - installed. ( Select - Unite thread sealant or equivalent on fitting threads )

Inspect mounting bolt conditions for any possible corrosion

Inspect the floor for any signs of fatigue or fractures

Sign off on the truck lift maintenance
